Plastic Injection Spill Pallet Mold

"Making Logistics More Faster" is our final achievement. So Rongdu Mould devote ourselves to logistics industrial for more than 30 years, we are on of the leaders at Pallet Mould manufacturing.

In order to support better quality pallet, Rongdu pay highly attention on the Mold Quality.  Rongdu have strong design team, we make many optimizations from hot runner system, cooling system, ejection system, and using well standard mold raw material, like HP20,H718,2738,S136 etc.
Rongdu Mould support more than 600 sets mould, including more than 500 sets pallet mould annually, and won a good reputations from our regular customer.

Product Description

We have advanced and complete testing equipment to ensure the quality of our products.

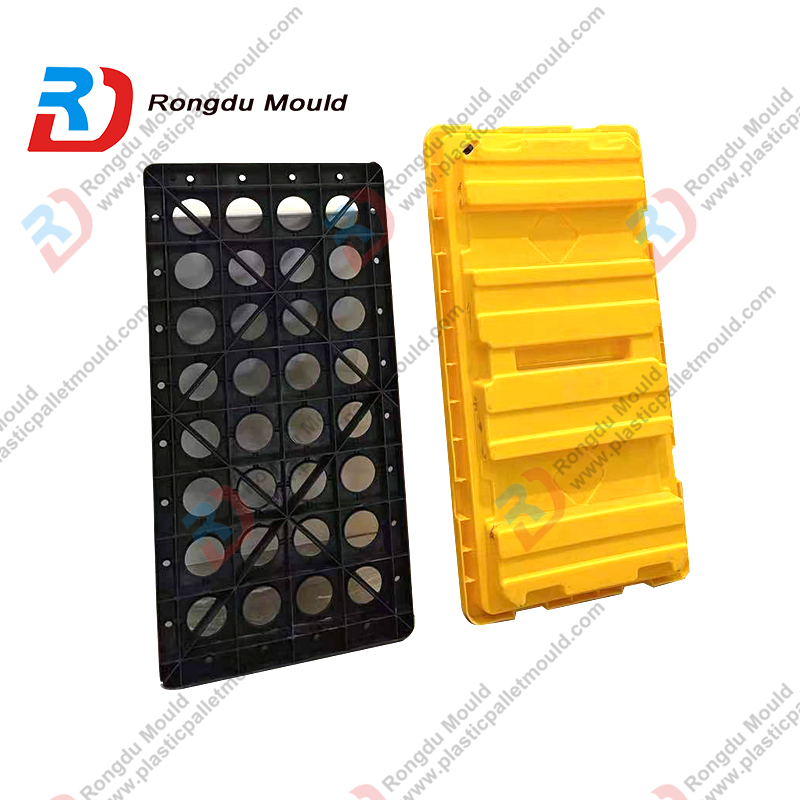

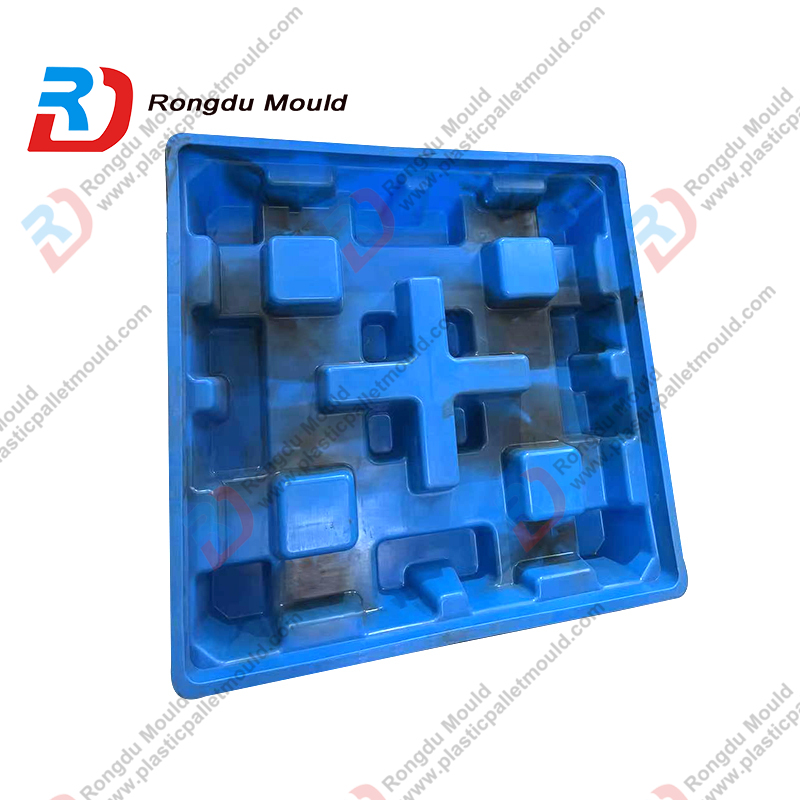

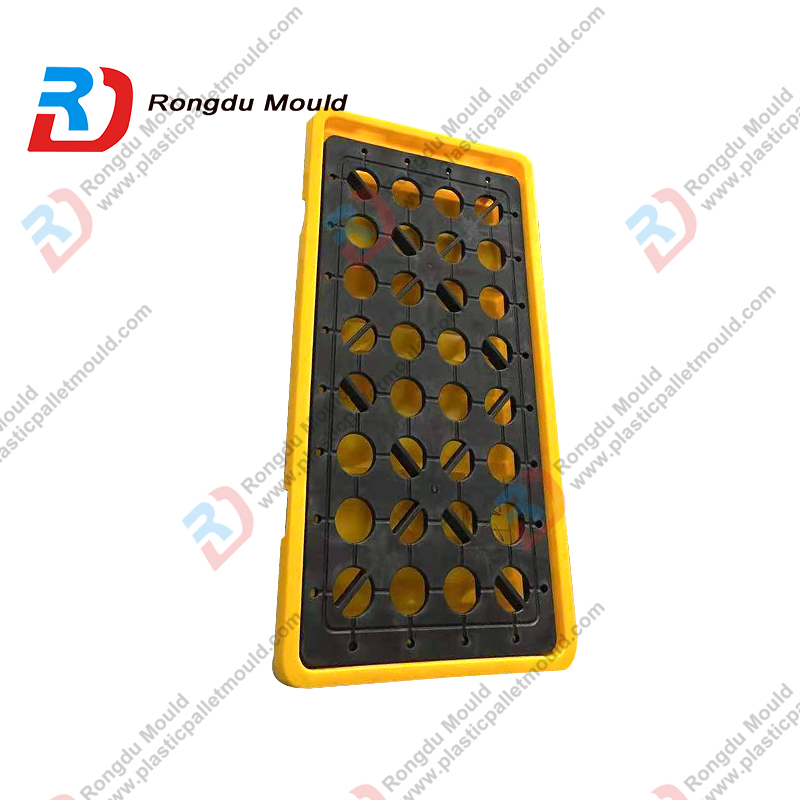

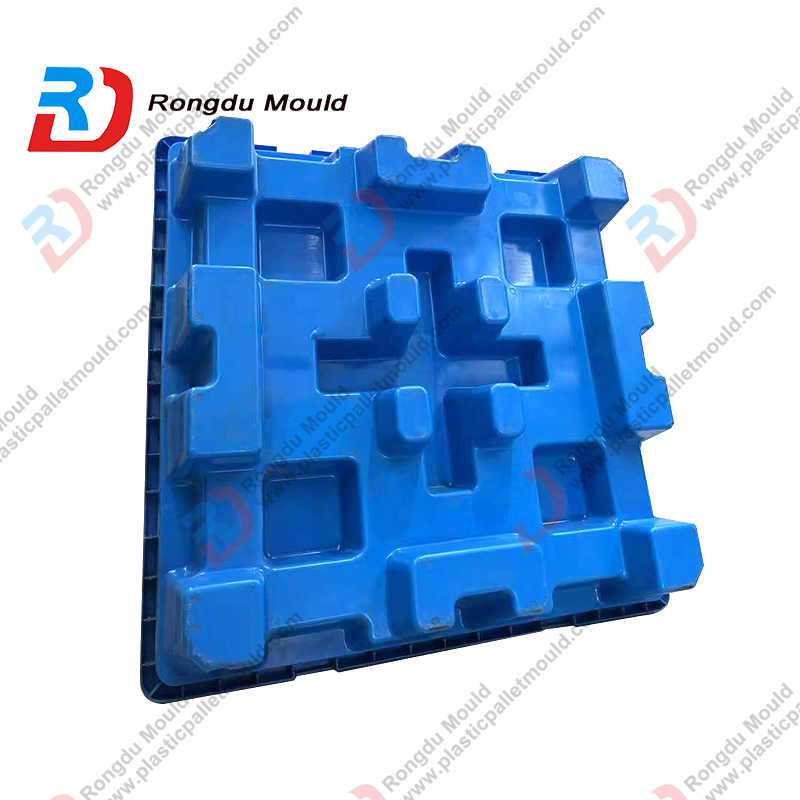

Plastic Spill Pallet could be used to load petrol cans, water barrels, etc. It can effectively prevent the liquid from falling to the ground, and avoid the damage to the environment caused by toxic and harmful liquids. So Spill Tank Pallet is more and more popular on the global market.

The size of Plastic Spill Pallet is very special, which needs to be specially customized. Rongdu Mould is very experienced in the production and manufacture of customized pallet mold, like spill tank pallet mold.



A good piece pallet need a good set Mold.



Rongdu Mould pay highly attention on pallet mould Quality and Cycle Time, Our strong design team optimize as following method:

First of all, optimizing the hot runner system, Rongdu using YUDO hot runner system for Pallet Mold, it is sensitive and stable for mold running. The most important thing is that more easily for maintenance. And we would take Mold Main Flow Analysis for every new project, it could ensure the balance of hot runner, and effectively to solve air trapped problem in advance. Scientific Position of Hot Runner Gate and high precision for plastic flow could realize High Speed Injection.

Second, optimizing the water cooling system, the diameter for water-runner is from 16-20mm, and insert beryllium copper for Deep-Rib. And For some thick part of pallet, like the foot and corner of pallet, it's hardly to cool down. So Rongdu Mould adopted “Two In” and “Two OutWater Cooling Runner for each plastic pallet foot and corner. Good raw steel material and double water cooling runner could deeply reduce the cooling time.

Next, optimizing the ejection system, Rongdu using JUNFAN brand hydraulic cylinder, which is imported from TAIWAN. It could support super power during the mold opening, so that it could hugely reduce the ejection time. And Rongdu using 5-Axis Tooling machine to manufacture the ejection Plate & Ejection Hole, High precision Tooling could ensure the balance and smooth during the ejection. Smoothly ejection could reduce friction, it could not only reduce the ejection cycle time, but also make Longer Pallet Mold Life.



High Effective and High Mold Quality are key points for Rongdu Mould. Best Mold Quality and Service makes that Rongdu Mould developed as a famous Chinese Pallet Mould Manufacturer.



Product Basci Info:

Pallet Size: Plastic Spill Pallet Injection Mold
Plastic: HDPE/PP
Pallet Weight:13kg(New HDPE)
Pallet type: customized pallet mold , spill pallet mold , spill tank mold, skid type pallet mold , Grid type pallet mold, Net type pallet mold, Four-Entrance type pallet mold, light-weight pallet mold, cross type pallet mold

Application: Logistics Transportation Industry
Mold Name: Oil Spill Pallet Plastic Injection Mold

Certification: TUV Certification

Origin: China

Port: Ningbo Port

Mark-Name: RONGDU MOULD

Mold Info:
Mold Size:1800*1950*1150mm
Steel for Mold Basement: S50C#
Steel for Mold Core & Cavity: HP20,H718,2738,S136
Steel Treatment Technology: Quenching, Heat Treatment, Pre-Hardening
Mold Design Program: UG(NX), AutoCAD, SolidWorks
Hot Runner System Brand: YUDO, MoldMaster, Chinese brand

Tips of Hot Runner: 20 tips
Cooling System: inserted Beryllium-Cooper(BeCu)
Ejection System:Ejector Pin & Plate
Hydraulic Cylinder: Taiwan Brand

Mold Tooling Machine:5-Axis CNC Machine, Double-Head EDM Machine, 3-Axis Drilling Machine
Mold Tooling Tolerance: within 0.01mm
Mold Spare Part: DME/HASCO standard, it could be easily for replace and maintain.
Mold Surface Treatment: High Gloss Polishing & Texture
Mold Cycle Time: 80S
Mold Life: more than 500K Shoots
T0 Time: 55 days
Mold Delivery: 60 days
Transport Package: Wooden Case
Mold Guarantee:1 Year


Taizhou Huangyan Rongdu Mould Co., Ltd.

Rongdu mold Co., Ltd. is well-known China Plastic Injection Spill Pallet Mold suppliers with more than 30 years of experience in the professional development and manufacturing of all kinds of plastic mold. The company specializes in producing plastic tray molds, turnover box molds, trash cans molds and daily necessities molds. It is located on the coast of the East China Sea, Zhejiang Huangyan, which is known as the kingdom of mold, with convenient transportation and superior geographical location.
In recent years, as a leading OEM Plastic Injection Spill Pallet Mold company the company has owned several CNC processing equipment of Japan and Taiwan, with the introduction of the advanced technology at home and abroad. We now have advanced CAD / CAM design system, large CNC machining center, CNC wire cutting equipment, high-precision electric spark and deep hole drilling and other processing equipment. We have accumulated rich production experience and realized the integration of mold development, design and manufacturing after years of mold development and manufacturing.
With the continuous development of the company, the products have been exported to many places including Europe, America, the Middle East, South Africa and Southeast Asian countries.
Rongdu Mold sincerely welcome new customers to call or write to negotiate! We look forward to sincere cooperation, joint efforts, mutual benefit and win-win situation!
