1400x1200x150mm Light Rectangle Hygienic Skid Pallet Plastic Mold

"Making Logistics More Faster" is our final achievement. So Rongdu Mould devote ourselves to logistics industrial for more than 30 years, we are on of the leaders at Pallet Mould manufacturing.

In order to support better quality pallet, Rongdu pay highly attention on the Mold Quality.  Rongdu have strong design team, we make many optimizations from hot runner system, cooling system, ejection system, and using well standard mold raw material, like HP20,H718,2738,S136 etc.
Rongdu Mould support more than 600 sets mould, including more than 500 sets pallet mould annually, and won a good reputations from our regular customer.

Product Description

We have advanced and complete testing equipment to ensure the quality of our products.

Plastic Injection Mould have various type, like logistics industry mold, packaging mold, automatic mold and so on. Rongdu Mould devote ourselves to logistics industry mold, especially for Plastic Injection Pallet Mold, Plastic Turnover Box Mold.

Plastic Pallet have many advantages, for example it has well quality and loading ability, so that plastic pallet could be multiple using. By the way, plastic pallet has standard size, it could apply to various purposes, like chemical industry, logistics transportation industry, automatic industry etc.



A good piece pallet need a good set Mold.

Rongdu Mould pay highly attention on pallet mould Quality and Cycle Time, Our strong design team optimize as following method:

First of all, optimizing the hot runner system, Rongdu using YUDO hot runner system for Pallet Mold, it is sensitive and stable for mold running. The most important thing is that more easily for maintenance. And we would take Mold Main Flow Analysis for every new project, it could ensure the balance of hot runner, and effectively to solve air trapped problem in advance. Scientific Position of Hot Runner Gate and high precision for plastic flow could realize High Speed Injection.

Second, optimizing the water cooling system, the diameter for water-runner is from 16-20mm, and insert beryllium copper for Deep-Rib. And For some thick part of pallet, like the foot and corner of pallet, it's hardly to cool down. So Rongdu Mould adopted “Two In” and “Two Out” Water Cooling Runner for each plastic pallet foot and corner. Good raw steel material and double water cooling runner could deeply reduce the cooling time.

Next, optimizing the ejection system, Rongdu using JUNFAN brand hydraulic cylinder, which is imported from TAIWAN. It could support super power during the mold opening, so that it could hugely reduce the ejection time. And Rongdu using 5-Axis Tooling machine to manufacture the ejection Plate & Ejection Hole, High precision Tooling could ensure the balance and smooth during the ejection. Smoothly ejection could reduce friction, it could not only reduce the ejection cycle time, but also make Longer Pallet Mold Life.


High Effective
and High Mold Quality are key points for Rongdu Mould. Best Mold Quality and Service makes that Rongdu Mould developed as a famous Chinese Pallet Mould Manufacturer.



Product Basci Info:

Pallet Size: 1400x1200x150mm Light Rectangle Hygienic Skid Pallet Plastic Mold
Plastic: HDPE/PP
Pallet Weight:17kg(New PP)
Pallet type: skid type pallet mold , Grid type pallet mold, Net type pallet mold, Four-Entrance type pallet mold, light-weight pallet mold, cross type pallet mold

Application: Logistics Transportation Industry
Mold Name: 1400x1200x150mm Light Rectangle Hygienic Skid Pallet Plastic Mold

Certification: TUV Certification

Origin: China

Port: Ningbo Port

Mark-Name: RONGDU MOULD

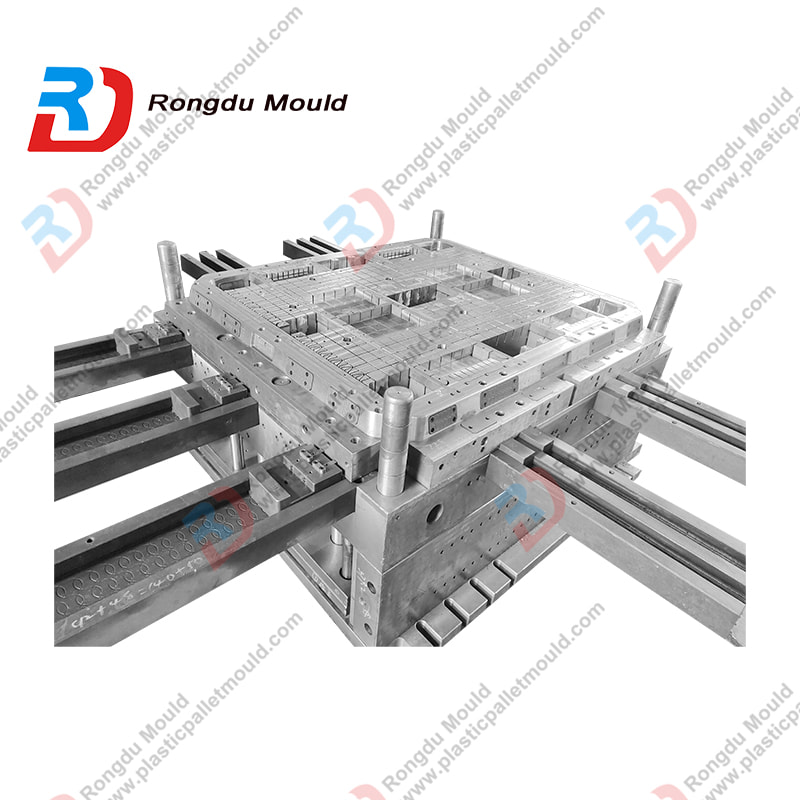

Mold Info:
Mold Size:1800*1950*1150mm
Steel for Mold Basement: S50C#
Steel for Mold Core & Cavity: HP20,H718,2738,S136
Steel Treatment Technology: Quenching, Heat Treatment, Pre-Hardening
Mold Design Program: UG(NX), AutoCAD, SolidWorks
Hot Runner System Brand: YUDO, MoldMaster, Chinese brand

Tips of Hot Runner: 30 tips
Cooling System: inserted Beryllium-Cooper(BeCu)
Ejection System:Ejector Pin & Plate
Hydraulic Cylinder: Taiwan Brand

Mold Tooling Machine:5-Axis CNC Machine, Double-Head EDM Machine, 3-Axis Drilling Machine
Mold Tooling Tolerance: within 0.01mm
Mold Spare Part: DME/HASCO standard, it could be easily for replace and maintain.
Mold Surface Treatment: High Gloss Polishing & Texture
Mold Cycle Time: 80S
Mold Life: more than 500K Shoots
T0 Time: 55 days
Mold Delivery: 60 days
Transport Package: Wooden Case
Mold Guarantee:1 Year
