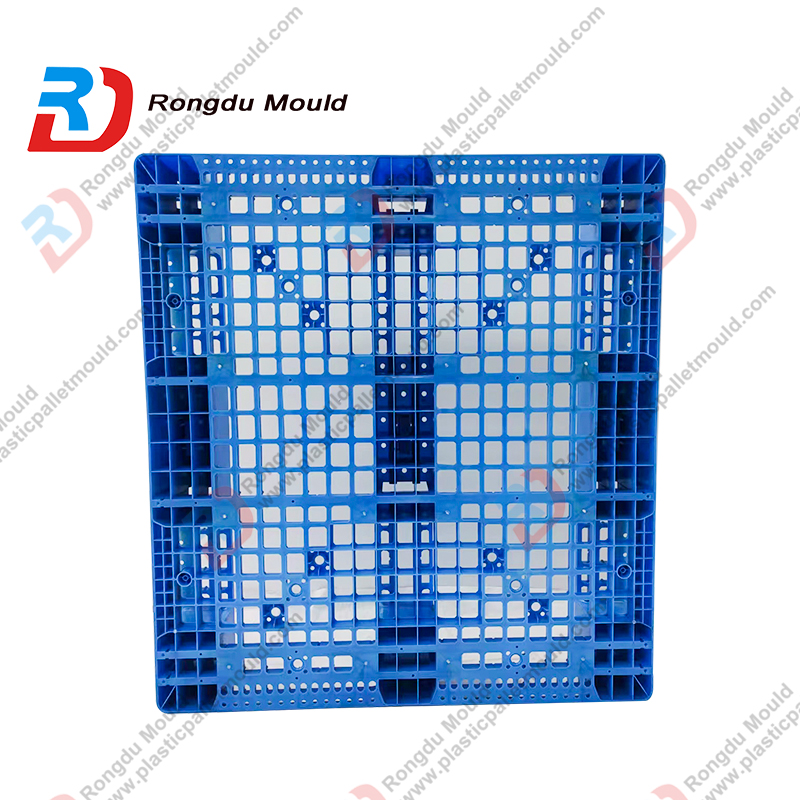

Plastic Skid Pallet is a good product for economic development, it makes convenient for transportation. 1300x1200x150mm Skid type pallet have many advantages, like using hygienic plastic for raw material, which realize the green and scientific manufacturing for plastic pallet. By the way, our skid pallet owns good structure and beautiful shape, it received good reputation on the market and our customer.
Rongdu Mould pay highly attention on pallet mould cycle time, Our strong design team optimize as following method:
First of all, optimizing the hot runner system, Rongdu using YUDO hot runner system for Pallet Mold, it is sensitive and stable for mold running. The most important thing is that more easily for maintain.
Second, optimizing the water cooling system, the diameter for water-runner is from 16-20mm, and insert beryllium copper for Deep-Rib. So that it could deeply reduce the cycle time.

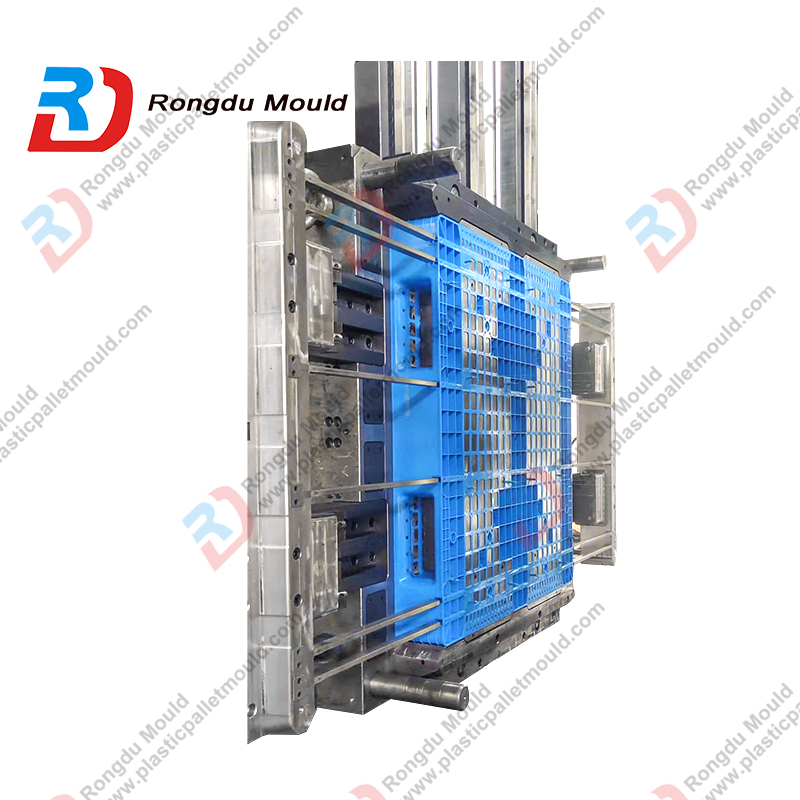

Next, optimizing the ejection system, Rongdu using JUNFAN brand hydraulic cylinder, which is imported from TAIWAN. It could support super power during the mold opening, so that it could hugely reduce the cycle time. And Rongdu using 5-Axis Tooling machine to manufacture the ejection Plate & Ejection Hole, High precision Tooling could ensure the BALANCE during the ejection.
Above technologies could ensure longer mold guarantee life and stable running.

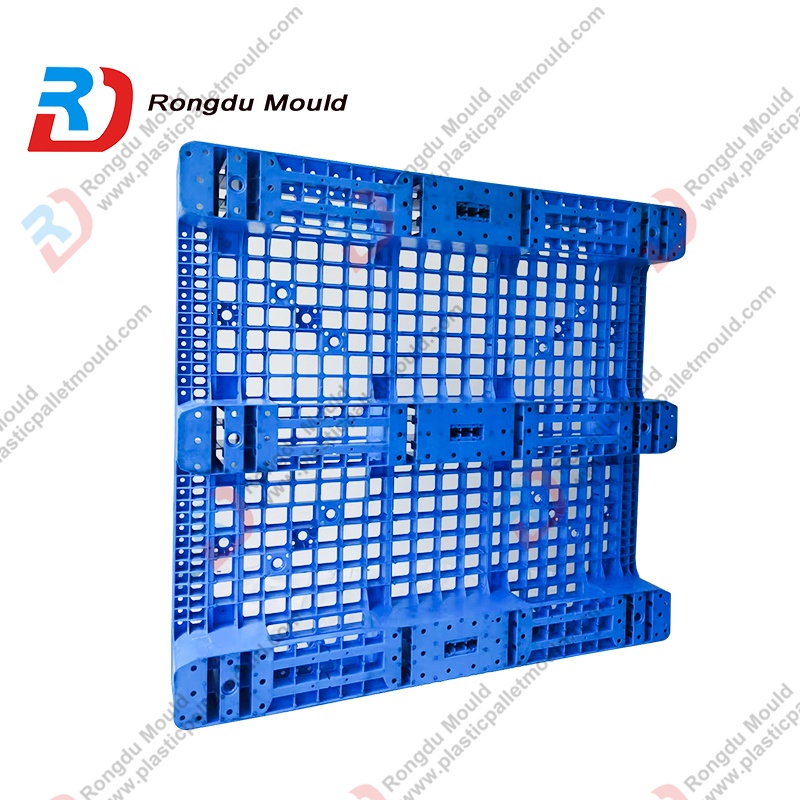

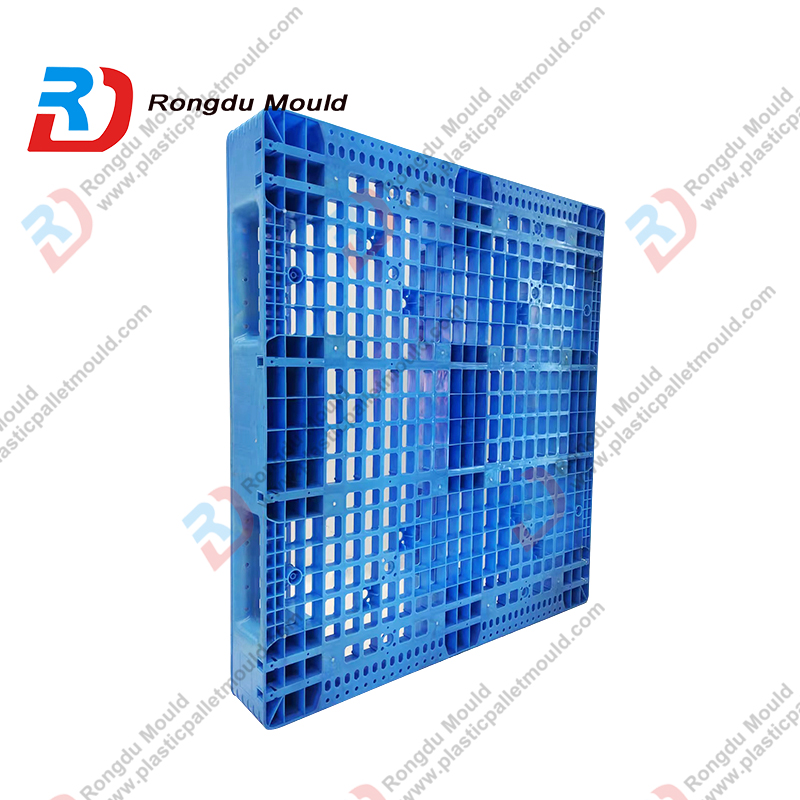

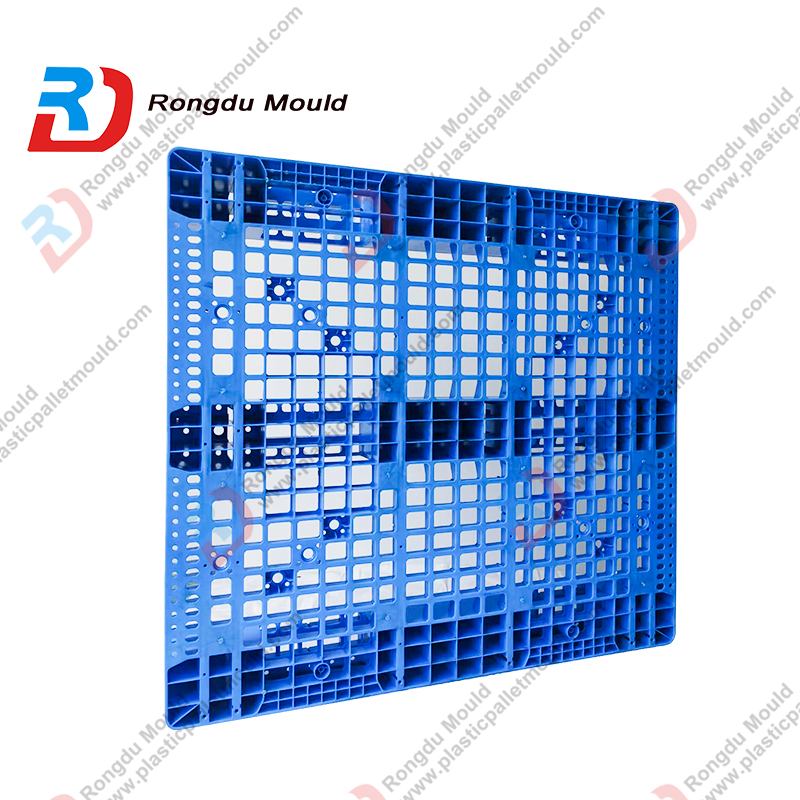

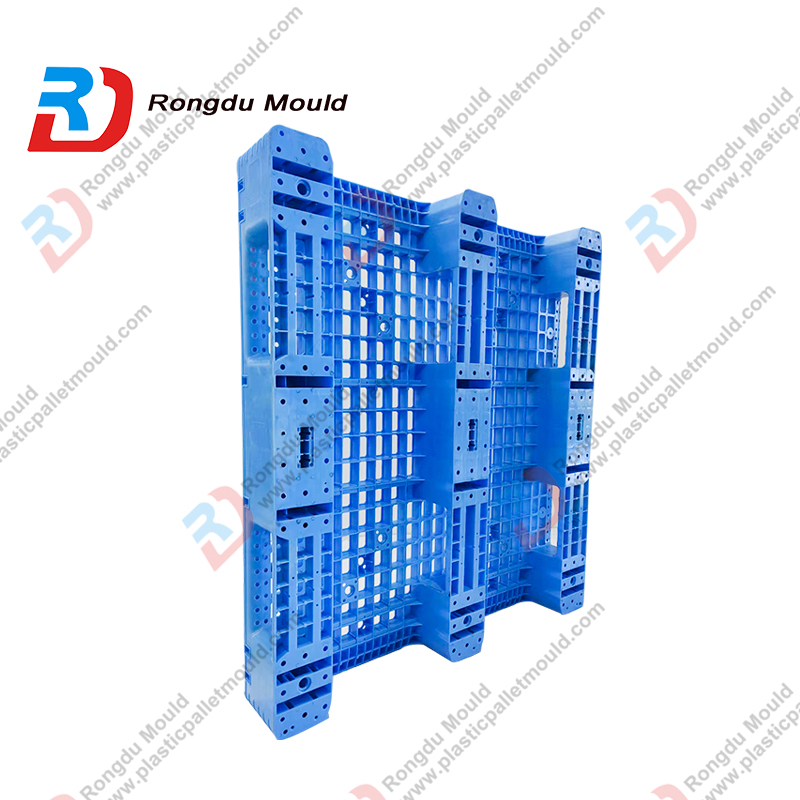

Product Basci Info:
Pallet Size:1300*1200*150mm light Entrance plastic injection hygienic pallet
Plastic: HDPE/PP
Pallet Weight:13.5kg(New PP)
Pallet type: skid type pallet mold , Grid type pallet mold, Net type pallet mold, Four-Entrance type pallet mold, light-weight pallet mold, cross type pallet mold
Application: Logistics Transportation Industrial
Mold Name: 1300*1200*150mm Logistics Industrial Disposable Light Plastic Injection hygienic Pallet Mold
Certification: TUV Certification
Origin: China
Port: Ningbo Port
Mark-Name: RONGDU MOULD

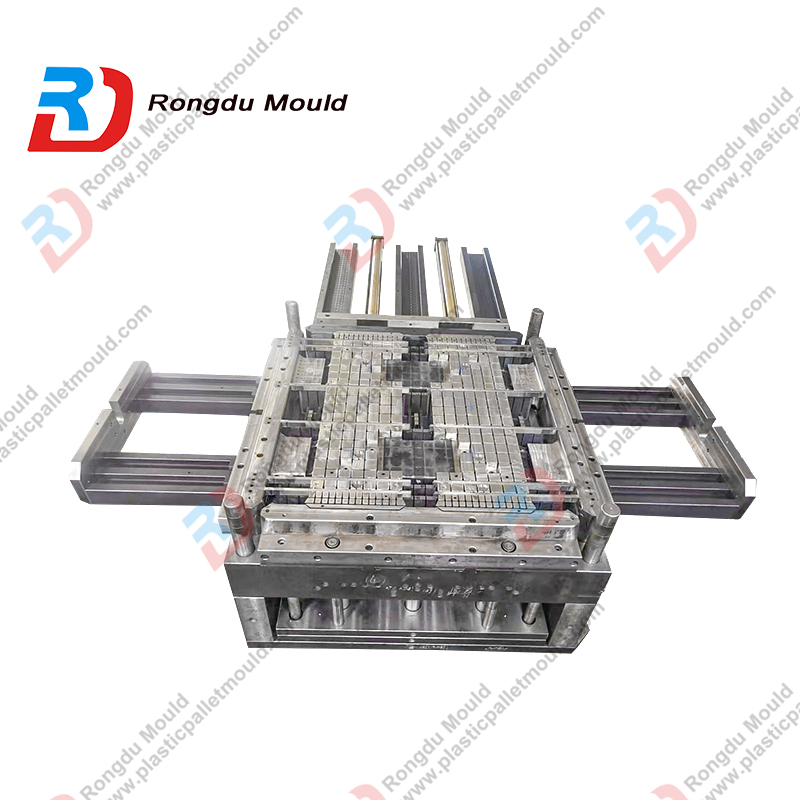

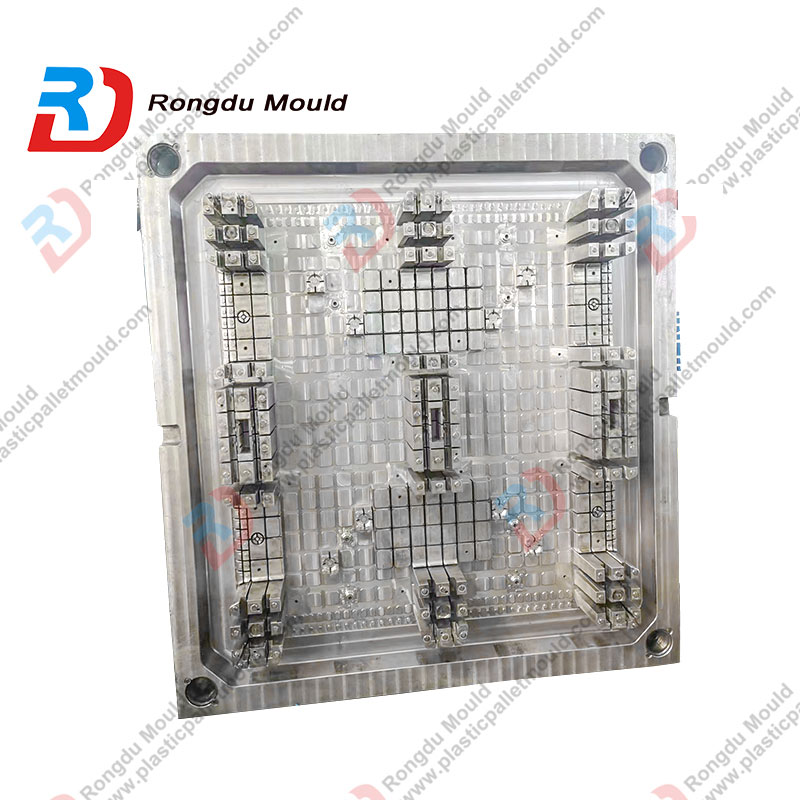

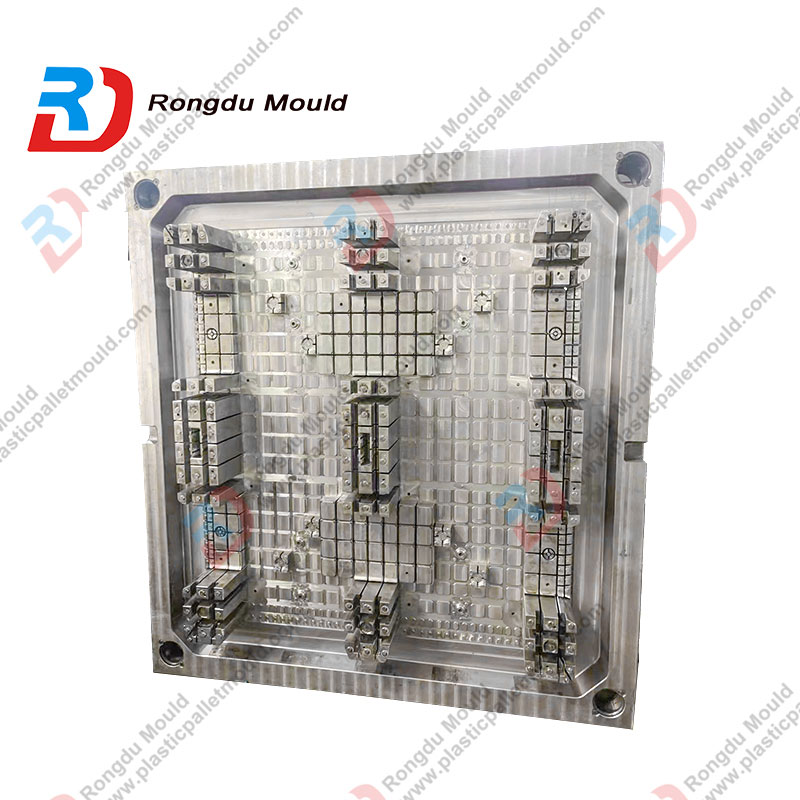

Mold Info:
Mold Size:1750*1600*1080mm
Steel for Mold Basement: S50C#
Steel for Mold Core & Cavity: HP20,H718,2738,S136
Steel Treatment Technology: Quenching, Heat Treatment, Pre-Hardening
Mold Design Program: UG(NX), AutoCAD, SolidWorks
Hot Runner System Brand: YUDO, MoldMaster, Chinese brand
Tips of Hot Runner: 30 tips
Cooling System: inserted Beryllium-Cooper(BeCu)
Ejection System:Ejector Pin & Plate
Hydraulic Cylinder: Taiwan Brand
Mold Tooling Machine:5-Axis CNC Machine, Double-Head EDM Machine, 3-Axis Drilling Machine
Mold Tooling Tolerance: within 0.01mm
Mold Spare Part: DME/HASCO standard, it could be easily for replace and maintain.
Mold Surface Treatment: High Gloss Polishing & Texture
Mold Cycle Time: 80S
Mold Life: more than 500K Shoots
T0 Time: 55 days
Mold Delivery: 60 days
Transport Package: Wooden Case
Mold Guarantee:1 Year
