Rongdu Mould focuses on Pallet Mould Quality, Hot Runner system, Air Venting System, Cooling System, ejection system and details about plastic pallet mold.

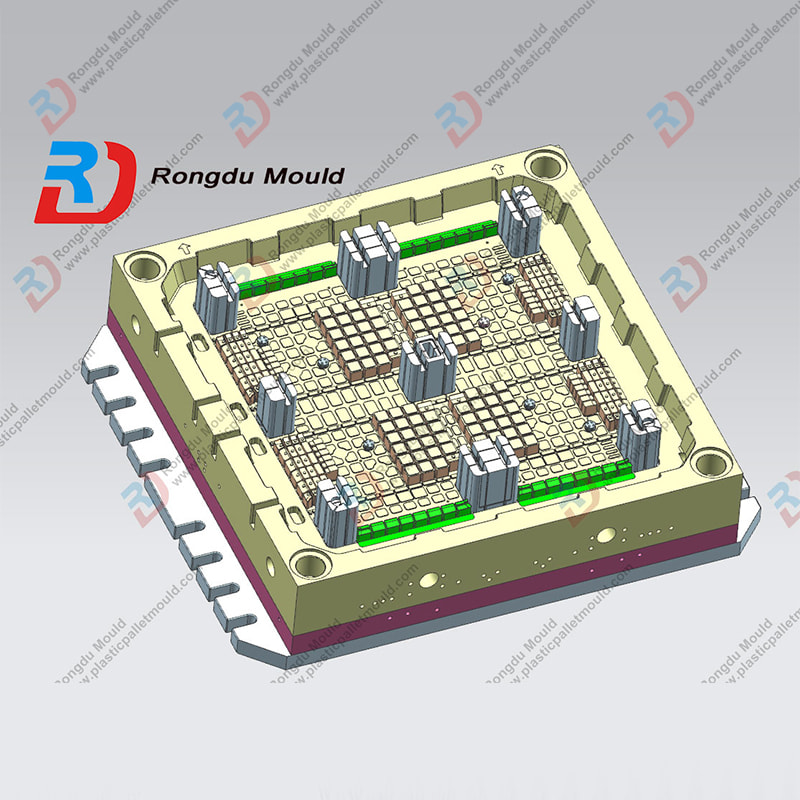

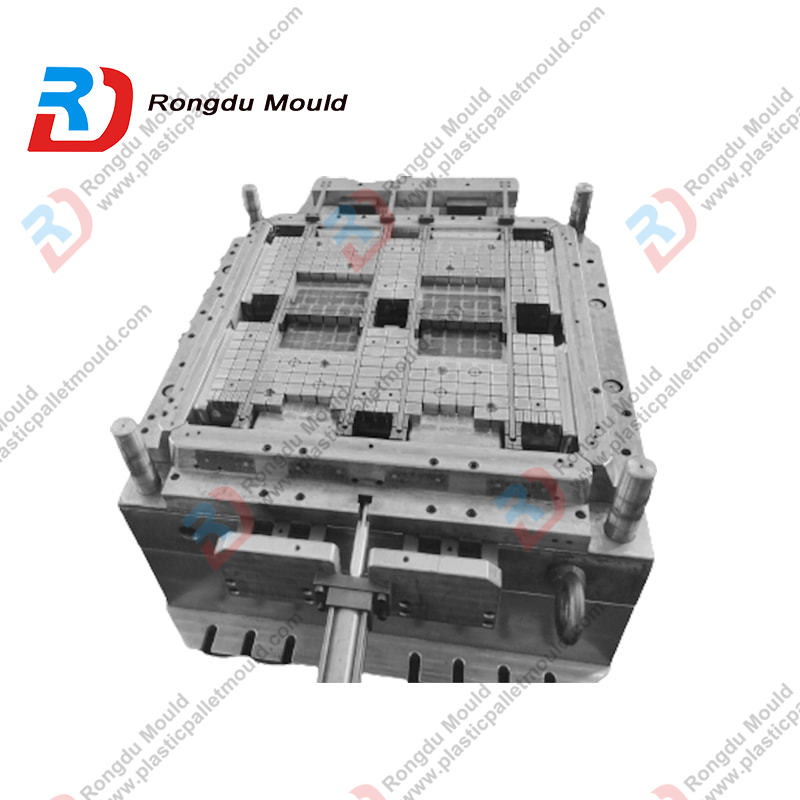

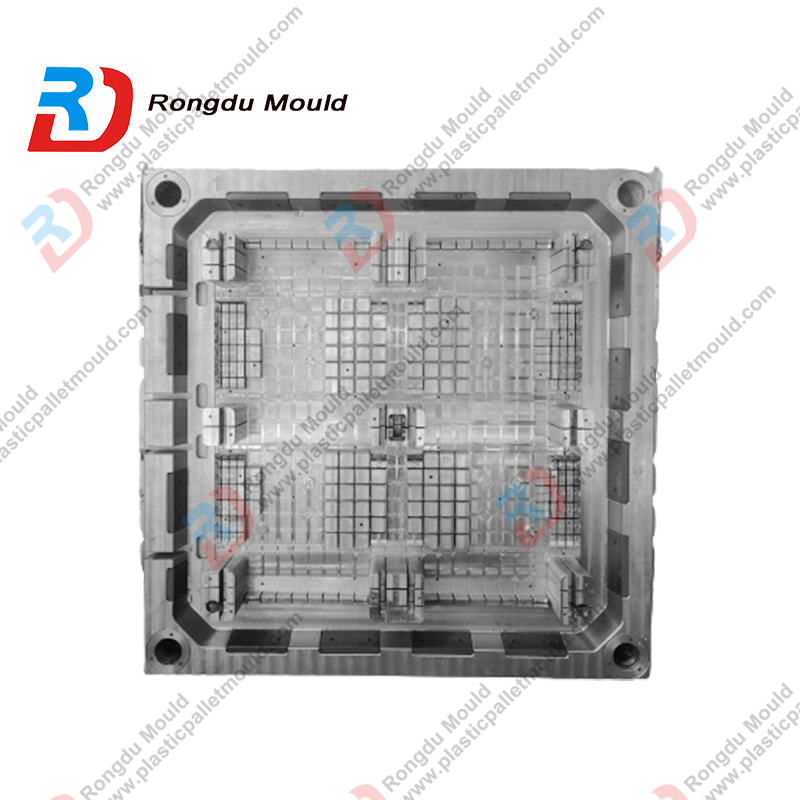

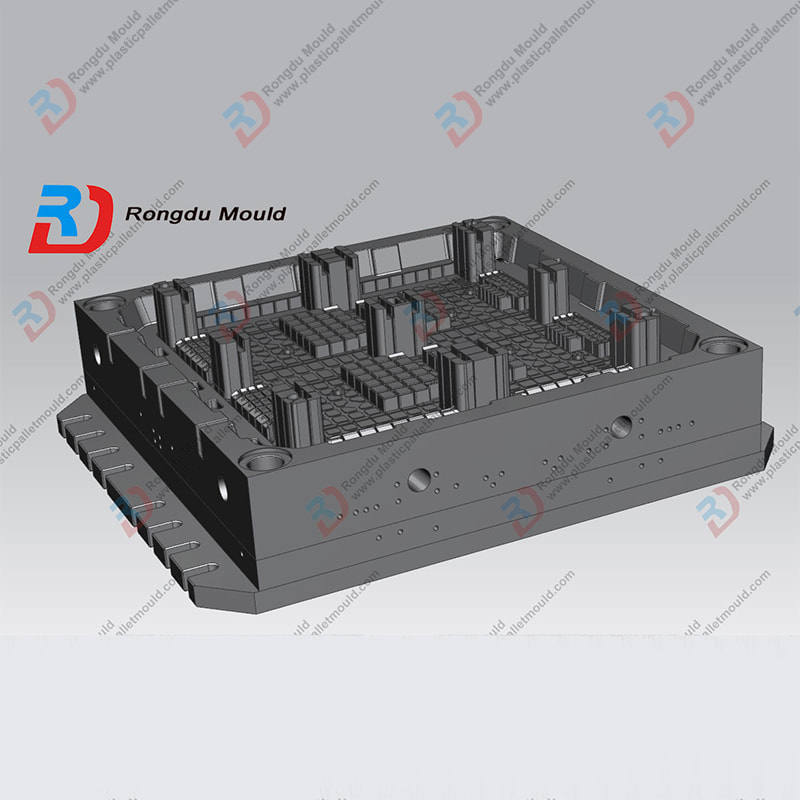

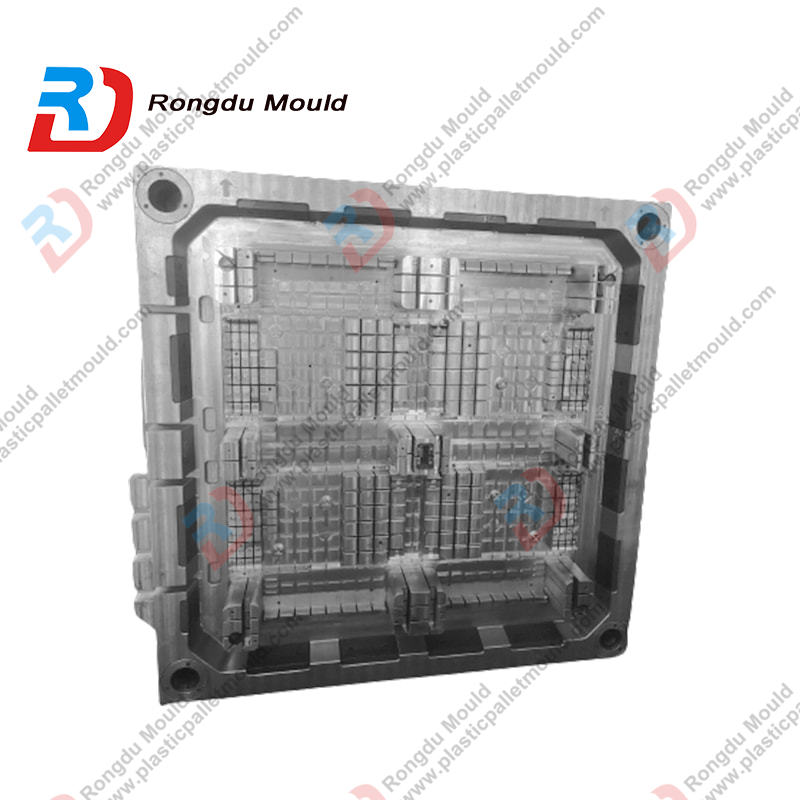

1100x1100x150mm Plastic Skid Pallet, it is custom made type of plastic pallet and owns huge quality demand on market. As the mold manufacturer, we need to provide good standard of pallet mold quality.
Rongdu using YUDO and Well Chinese local brand for hot runner system, in order to procession control the temperature change. Well standard hot runner system could Remove the Welding Line and surface of pallet beautiful. By the way, Rongdu Mould onws stronger design team, we have scientific air venting system, it could Take Away of the Air Trapping.
As the cooling system, Rongdu arranges scientific about water runner, fast cooling time could efficient producing on plastic injection molding machine.

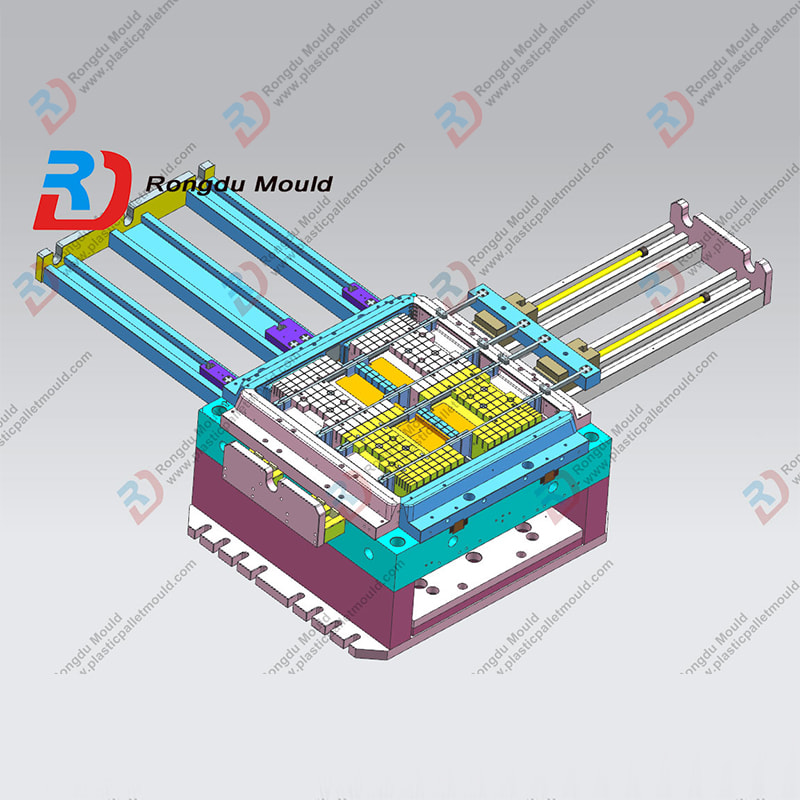

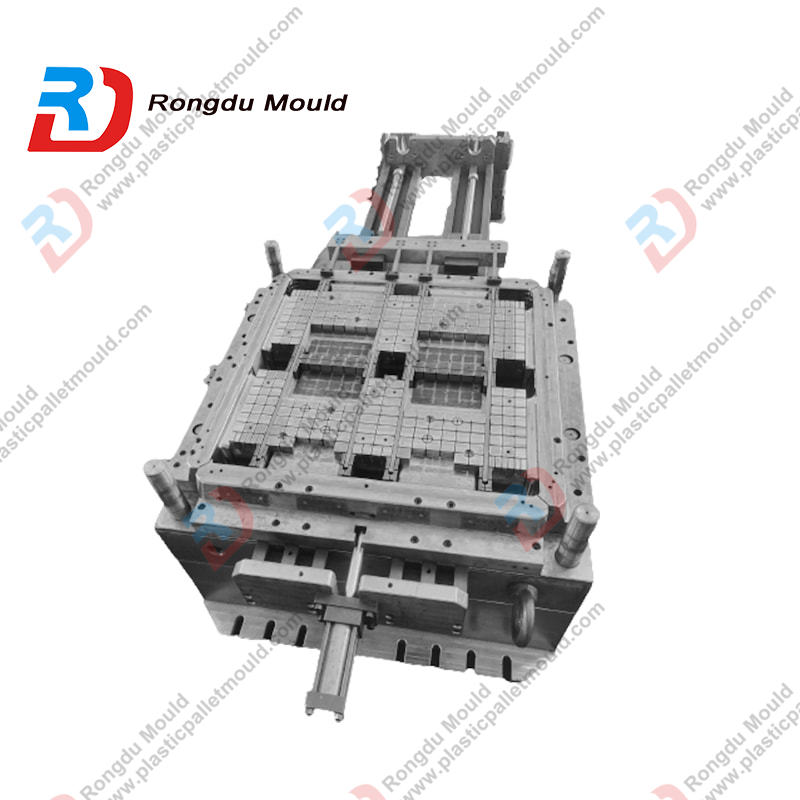

About ejection system. Rongdu Mould using 5-Axi Deep Hole Drilling Machine for ejector plate tooling, SKD of ejector pin and JUNFAN of hydraulic cylinder for Mold spare part. High tooling precision and well standard Mold spare part could ensure the balance during the ejection, it is appropriate for automated robot during the take out.
Product Basci Info:

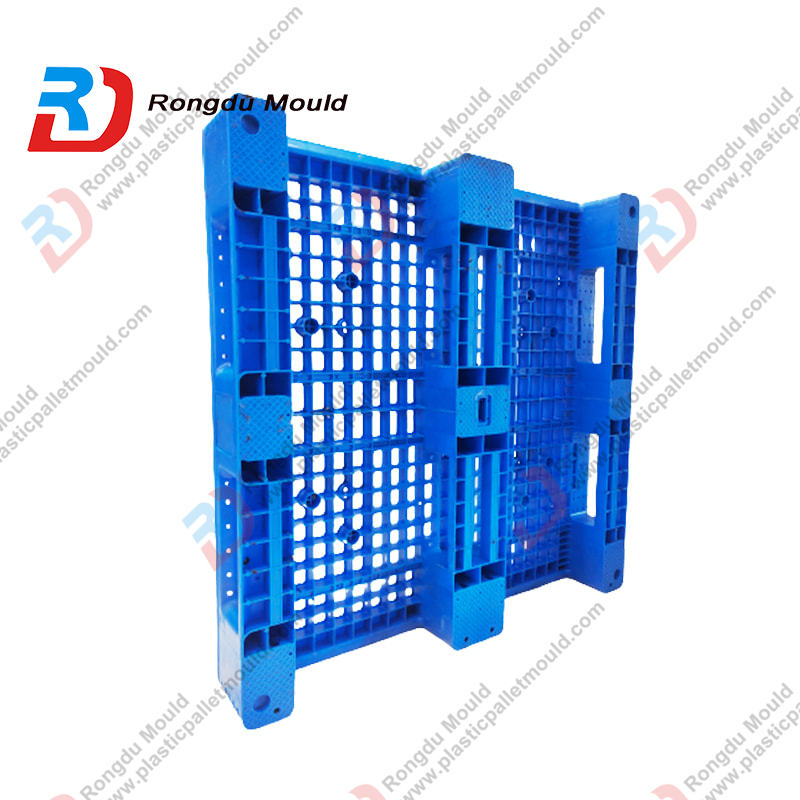

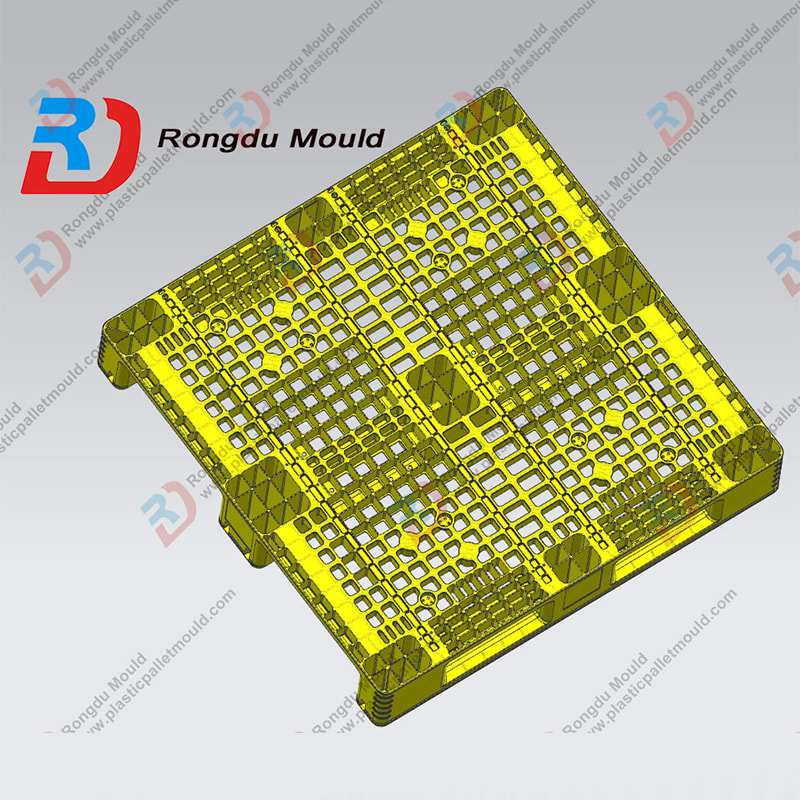

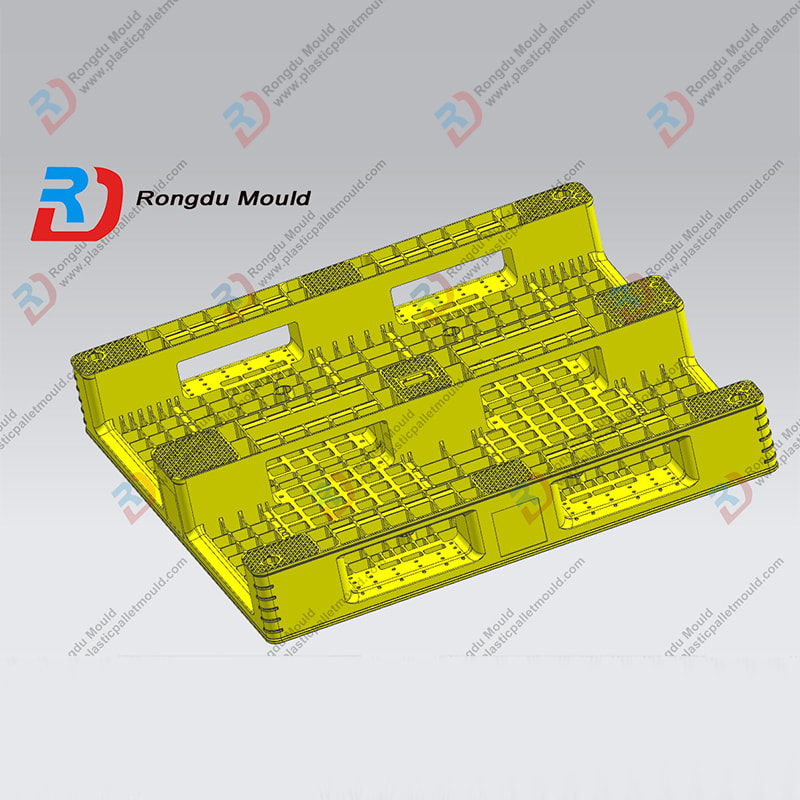

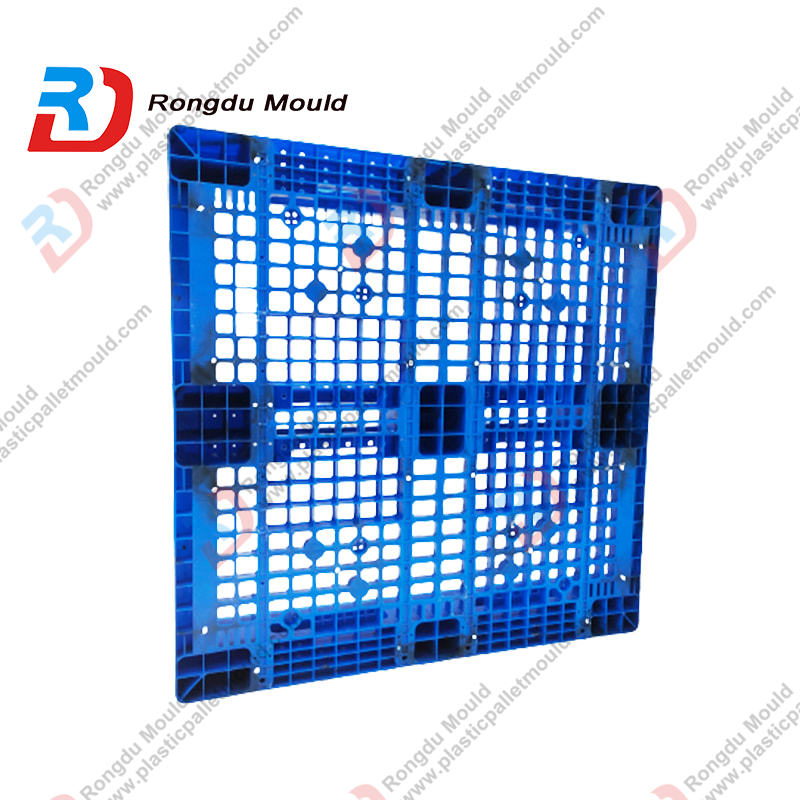

Pallet Size: 1100x1100x150mm custom-made logistics industry transportation recycled plastic four entrance pallet
Pallet Weight:14.3kg(New HDPE)
Pallet type: Light, Grid, Net, Four-Entrance, integrated
Application: Logistics Transportation industry

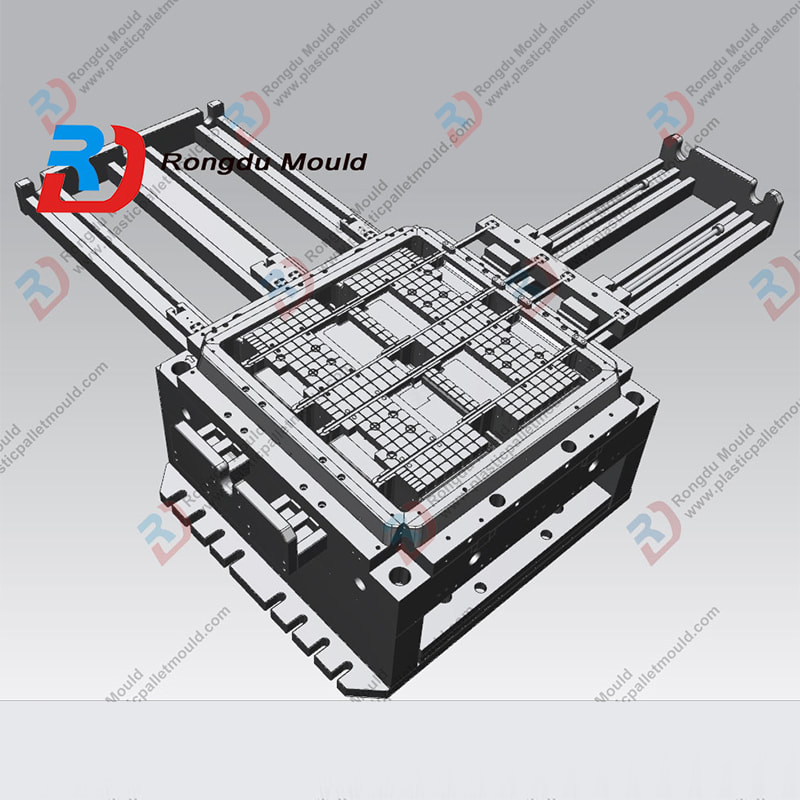

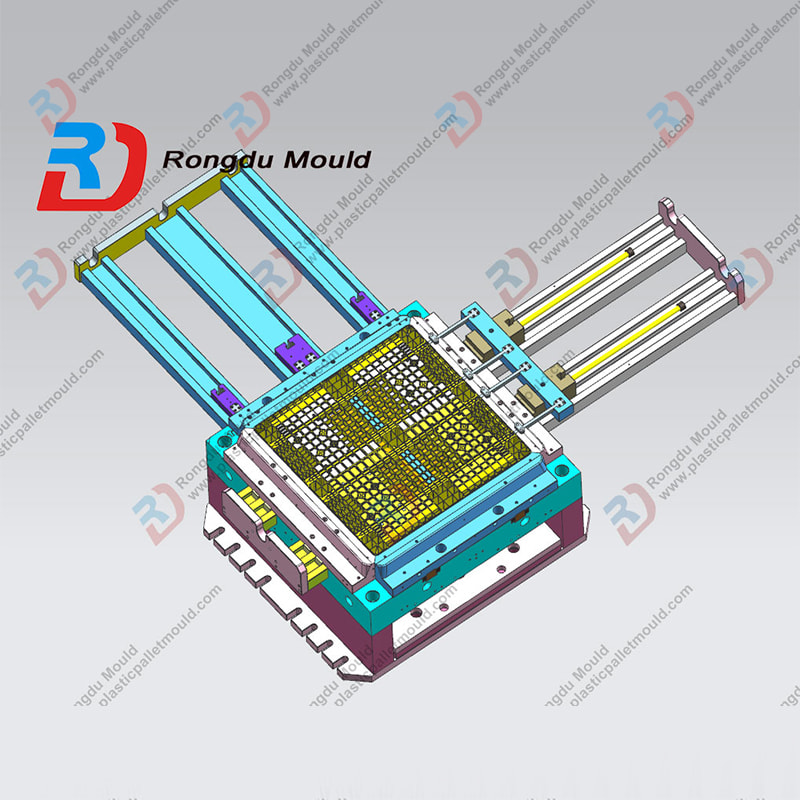

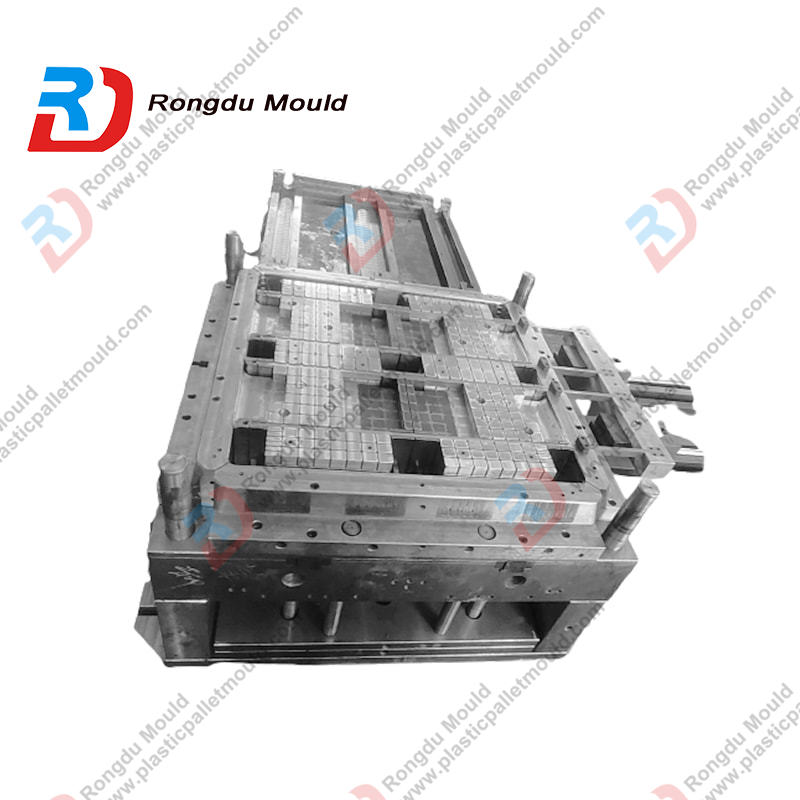

Mold Name: 1100x1100x150mm custom-made logistics industry transportation recycled plastic four entrance pallet mold
Certification: TUV Certification
Port: Ningbo Port
Mark-Name: RONGDU MOULD
Steel for Mold Basement: S50C#
Steel for Mold Core & Cavity: HP20,H718,2738,S136
Steel Treatment Technology: Quenching, Heat Treatment, Pre-Hardening
Mold Design Program: UG(NX), AutoCAD, SolidWorks
Hot Runner System Brand: YUDO, MoldMaster, Chinese brand
Tips of Hot Runner: 24 tips
Cooling System: inserted Beryllium-Cooper(BeCu)
Ejection System:Ejector Pin & Plate
Hydraulic Cylinder: Taiwan Brand
Mold Tooling Machine:5-Axis CNC Machine, Double-Head EDM Machine, 3-Axis Drilling Machine
Mold Tooling Tolerance: within 0.01mm
Mold Spare Part: DME/HASCO standard, it could be easier for replace and maintain.
Mold Surface Treatment: High Gloss Polishing & Texture
Mold Cycle Time: 120S
Mold Life: more than 500K Shoots
T0 Time: 70 days
Mold Delivery: 75 days
Transport Package: Wooden Case
Mold Guarantee:1 Year
