1100*1100*125mm Logistics Industrial Disposable Light Plastic Injection Pallet Mold

"Making Logistics More Faster" is our final achievement. So Rongdu Mould devote ourselves to logistics industrial for more than 30 years, we are on of the leaders at Pallet Mould manufacturing.


In order to support better quality pallet, Rongdu pay highly attention on the Mold Quality.  Rongdu have strong design team, we make many optimizations from hot runner system, cooling system, ejection system, and using well standard mold raw material, like HP20,H718,2738,S136 etc.
Rongdu Mould support more than 600 sets mould, including more than 500 sets pallet mould annually, and won a good reputations from our regular customer.

Product Description

We have advanced and complete testing equipment to ensure the quality of our products.

1100*1100*125mm light window pallet is disposable pallet and welcome on the market. During the logistics industrial transportation, light window pallet is more convenient than traditional heavy window pallet. By the way, it has stronger loading ability with lower weight.

Rongdu Mould pay highly attention on pallet mould cycle time, Our strong design team optimize as following method:

First of all, optimizing the hot runner system, Rongdu using YUDO hot runner system for Pallet Mold, it is sensitive and stable for mold running. The most important thing is that more easily for maintain.

Second, optimizing the water cooling system, the diameter for water-runner is from 16-20mm, and insert beryllium copper for Deep-Rib. So that it could deeply reduce the cycle time.

Next, optimizing the ejection system, Rongdu using JUNFAN brand hydraulic cylinder, which is imported from TAIWAN. It could support super power during the mold opening, so that it could hugely reduce the cycle time. And Rongdu using 5-Axis Tooling machine to manufacture the ejection Plate & Ejection Hole, High precision Tooling could ensure the BALANCE during the ejection.

Above technologies could ensure longer mold guarantee life and stable running.


Product Basci Info:

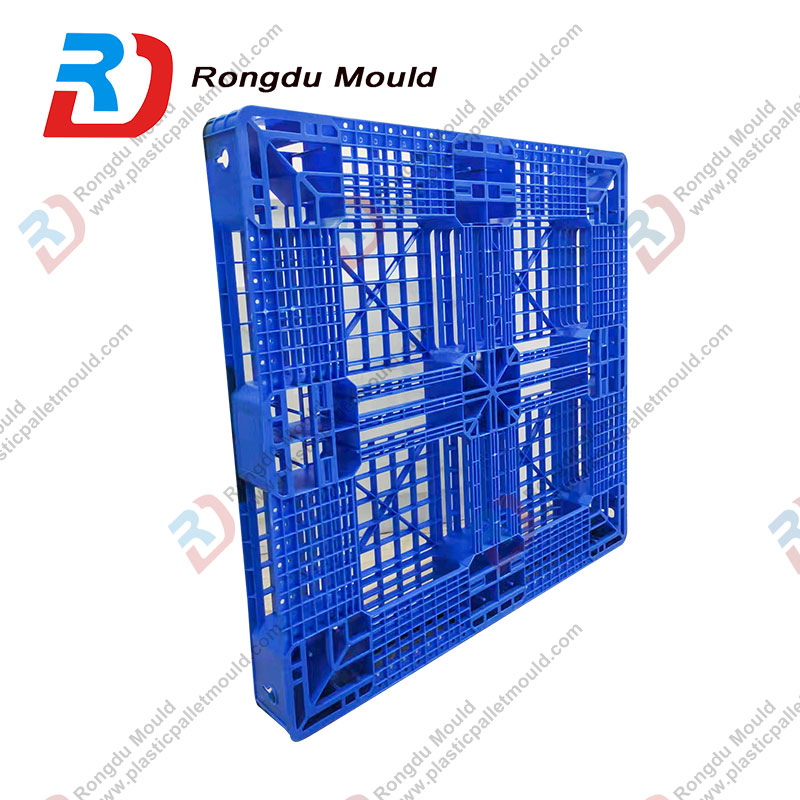

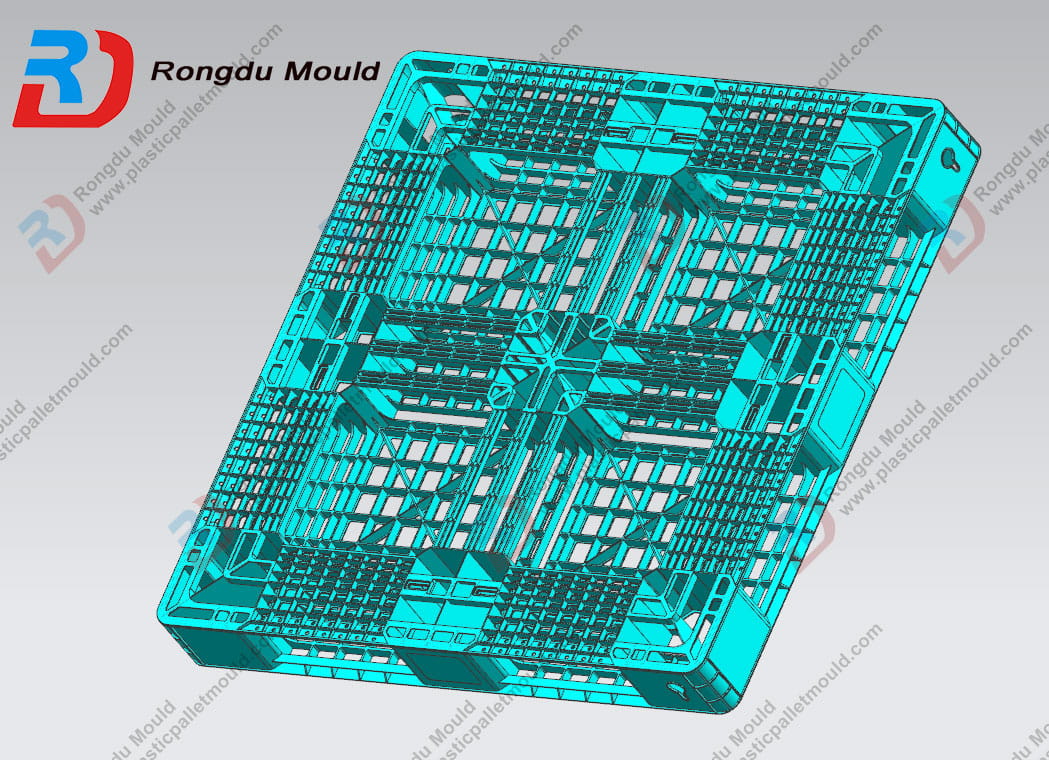

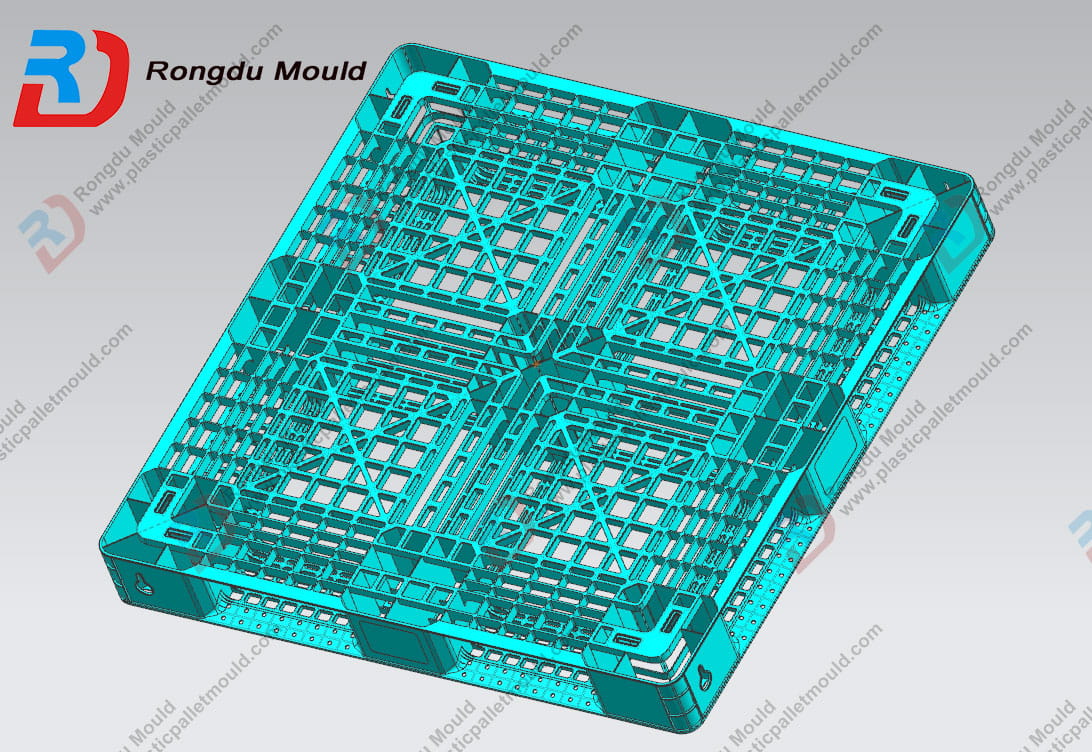

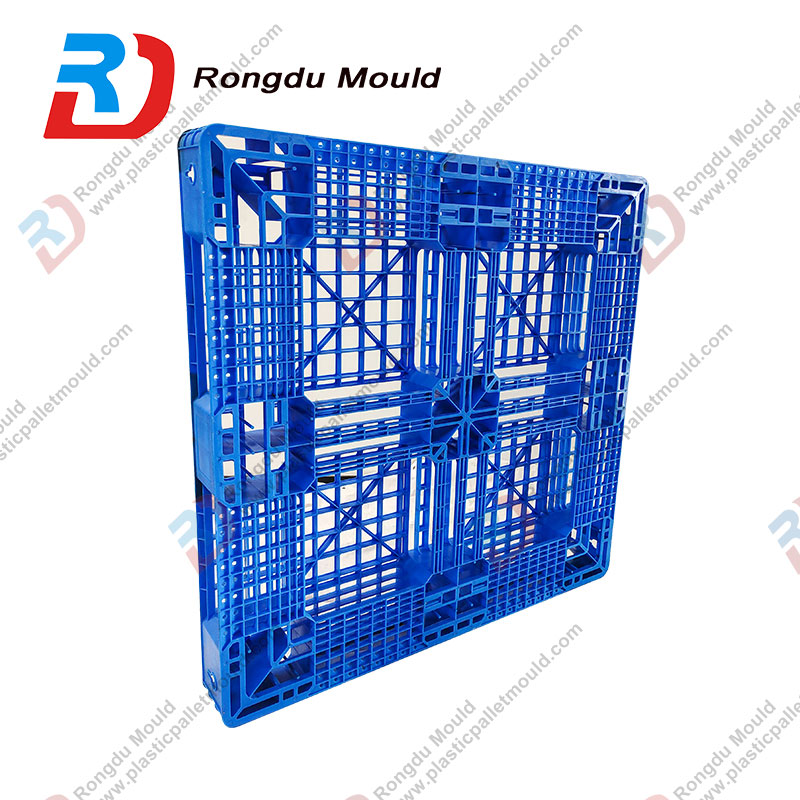

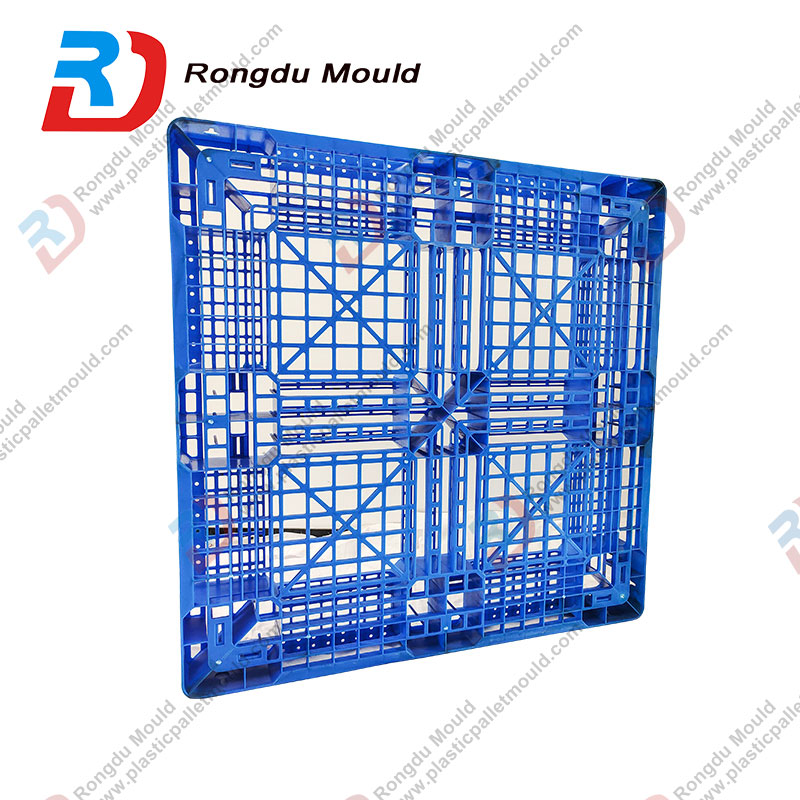

Pallet Size:1100*1100*125mm light weight disposable plastic injection window pallet
Plastic: HDPE/PP
Pallet Weight:7.3kg(New PP)
Pallet type: window type pallet mold , Grid type pallet mold, Net type pallet mold, Four-Entrance type pallet mold, light-weight pallet mold

Application: Logistics Transportation Industrial
Mold Name: 1100*1100*125mm Logistics Industrial Disposable Light Plastic Injection Pallet Mold

Certification: TUV Certification

Origin: China

Port: Ningbo Port

Mark-Name: RONGDU MOULD

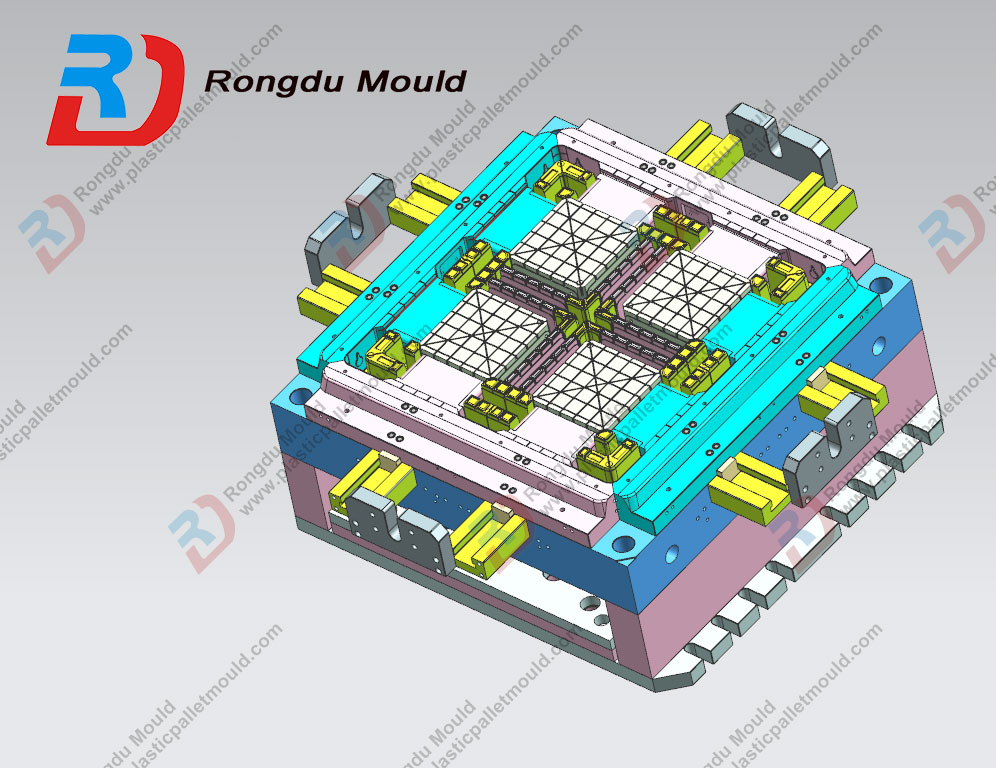

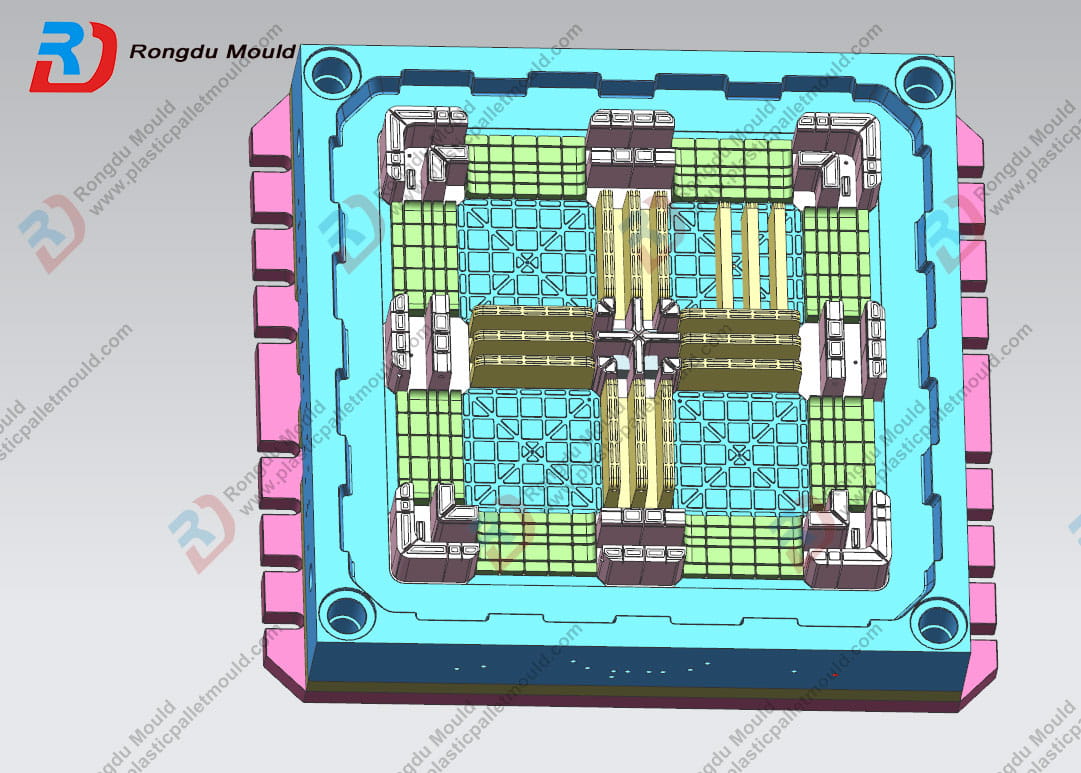

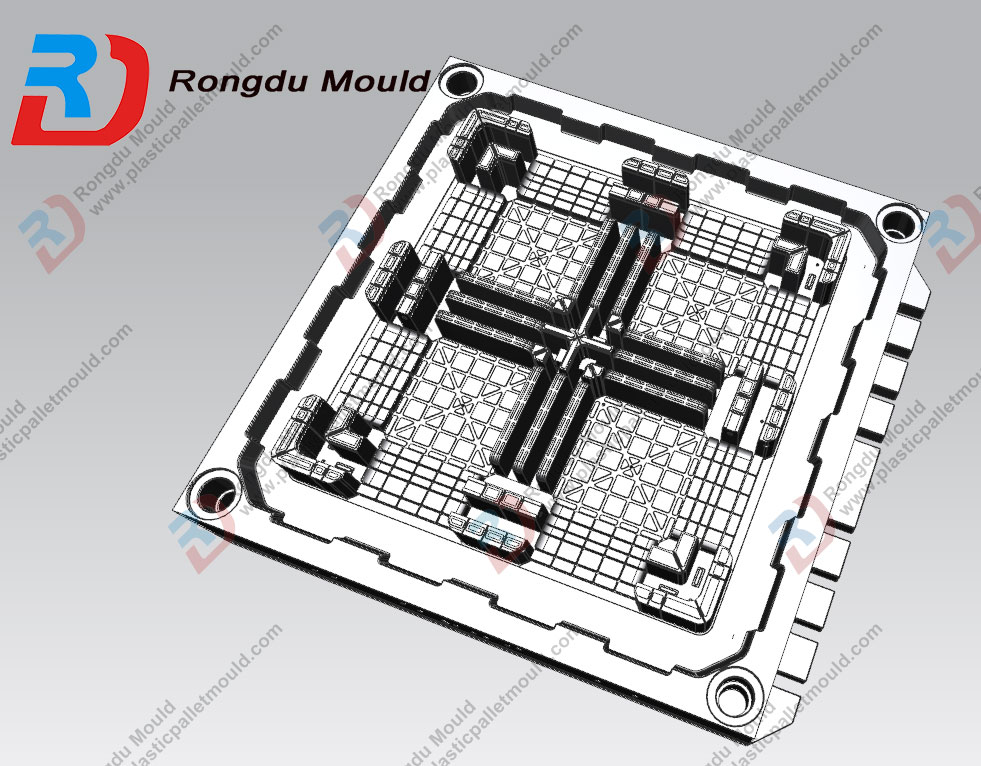

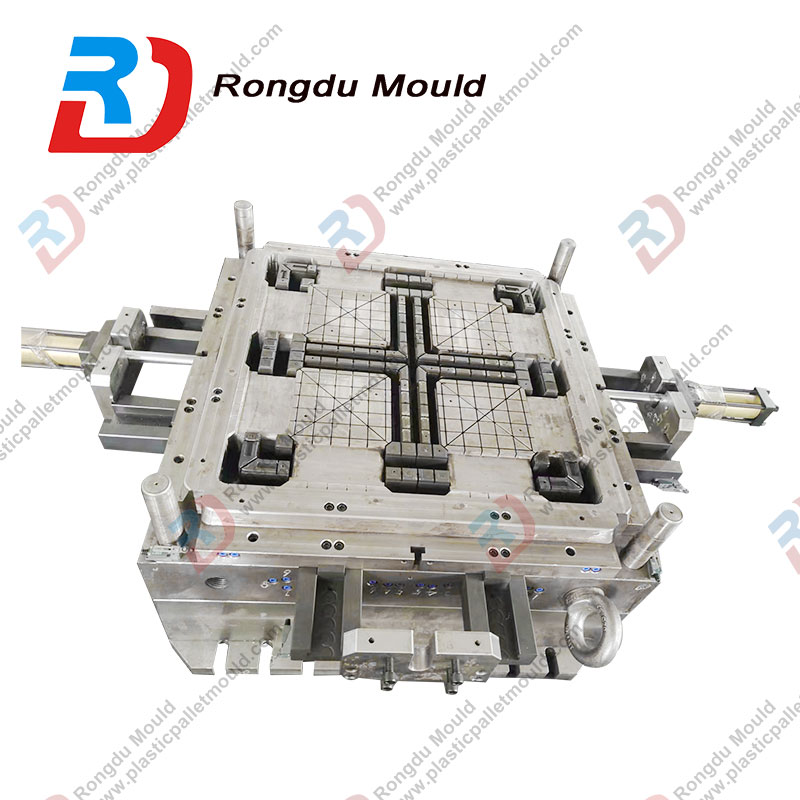

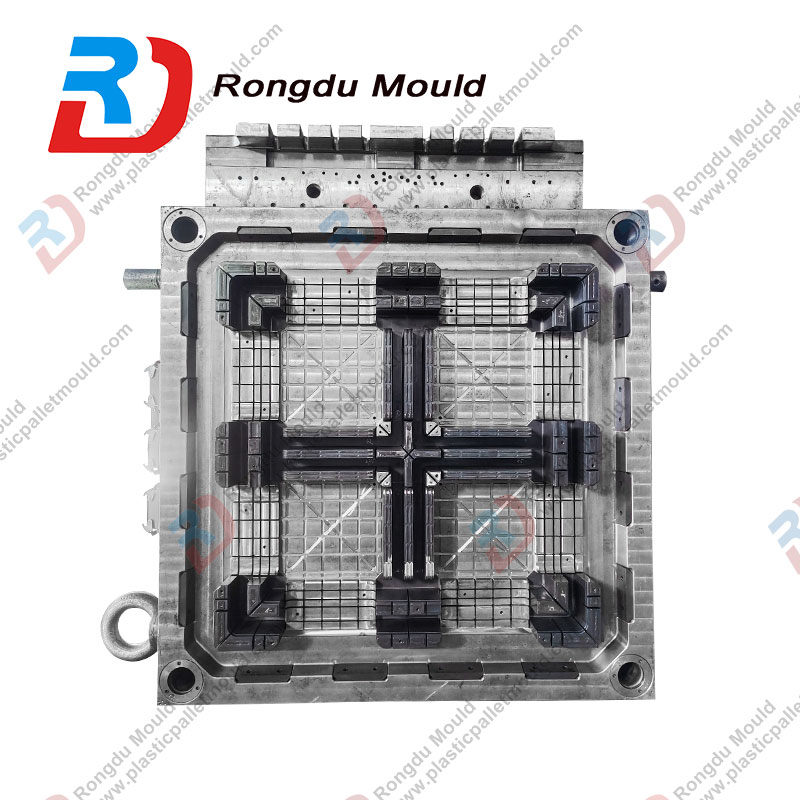

Mold Info:

Mold Size:1650*1500*1000mm
Steel for Mold Basement: S50C#
Steel for Mold Core & Cavity: HP20,H718,2738,S136
Steel Treatment Technology: Quenching, Heat Treatment, Pre-Hardening
Mold Design Program: UG(NX), AutoCAD, SolidWorks
Hot Runner System Brand: YUDO, MoldMaster, Chinese brand

Tips of Hot Runner: 20 tips
Cooling System: inserted Beryllium-Cooper(BeCu)
Ejection System:Ejector Pin & Plate
Hydraulic Cylinder: Taiwan Brand

Mold Tooling Machine:5-Axis CNC Machine, Double-Head EDM Machine, 3-Axis Drilling Machine
Mold Tooling Tolerance: within 0.01mm
Mold Spare Part: DME/HASCO standard, it could be easily for replace and maintain.
Mold Surface Treatment: High Gloss Polishing & Texture
Mold Cycle Time: 80S
Mold Life: more than 500K Shoots
T0 Time: 55 days
Mold Delivery: 60 days
Transport Package: Wooden Case
Mold Guarantee:1 Year
