We have advanced and complete testing equipment to ensure the quality of our products.
1200x800x140mm Flat top pallet has many advantages, it has light weight, easily for product storage and transportation, convenient for cleaning and multiple using. 1200x800 Flat type light pallet could apply to medical storage, food storage and so on.
A good piece pallet need a good set Mold.
In order to support customer better quality pallet mold, Rongdu Mould pay highly attention on pallet mould cycle time, Our strong design team optimize as following method:
First of all, optimizing the hot runner system, Rongdu using YUDO hot runner system for Pallet Mold, it is sensitive and stable for mold running. The most important thing is that more easily for maintain.
Second, optimizing the water cooling system, the diameter for water-runner is from 16-20mm, and insert beryllium copper for Deep-Rib. So that it could deeply reduce the cycle time.
Next, optimizing the ejection system, Rongdu using JUNFAN brand hydraulic cylinder, which is imported from TAIWAN. It could support super power during the mold opening, so that it could hugely reduce the cycle time. And Rongdu using 5-Axis Tooling machine to manufacture the ejection Plate & Ejection Hole, High precision Tooling could ensure the BALANCE during the ejection.
Above technologies could ensure longer mold guarantee life and stable running.
Product Basci Info:

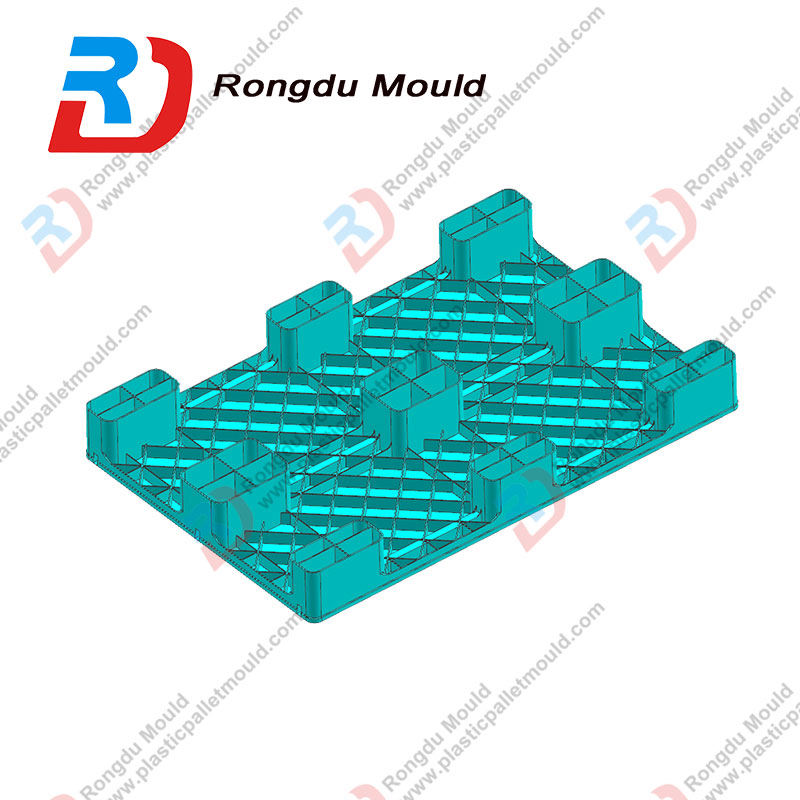

Pallet Size: 1200x800x140mm Plastic Injection Logistics Storage Hygienic Light Nine Foot/Leg Pallet
Plastic: HDPE/PP
Pallet Weight:9.1kg(New PP)
Pallet type: nine foot type pallet mold, flat type pallet mold, Net type pallet mold, Four-Entrance type pallet mold, light-weight pallet mold, cross type pallet mold,logistics pallet, storage pallet
Application: Logistics Transportation Industrial
Mold Name: 1200x800x140mm Plastic Injection Logistics Storage Hygienic Light Nine Foot/Leg Pallet Mold
Certification: TUV Certification
Origin: China
Port: Ningbo Port
Mark-Name: RONGDU MOULD

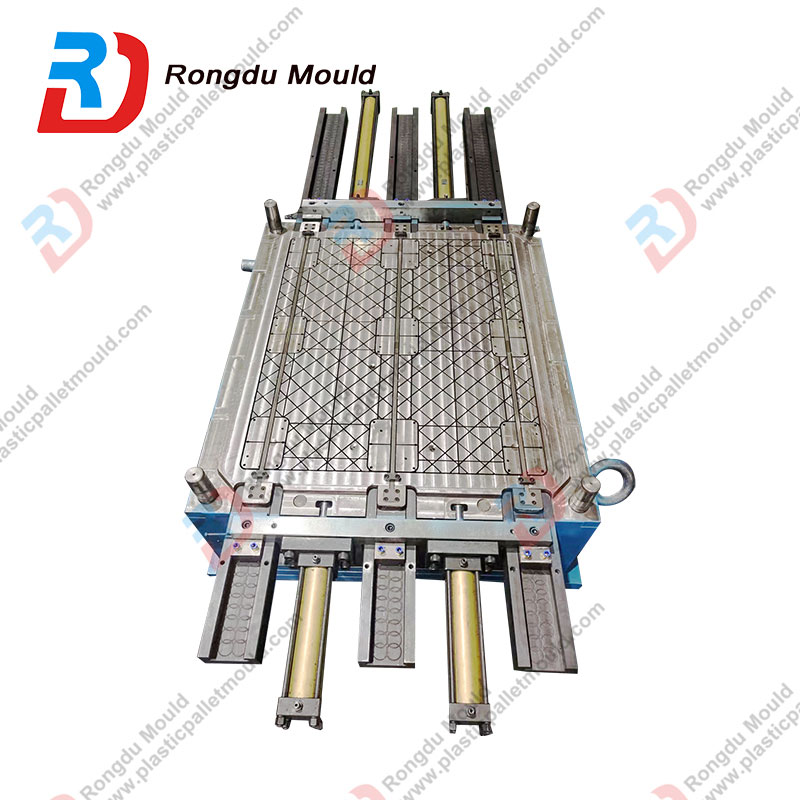

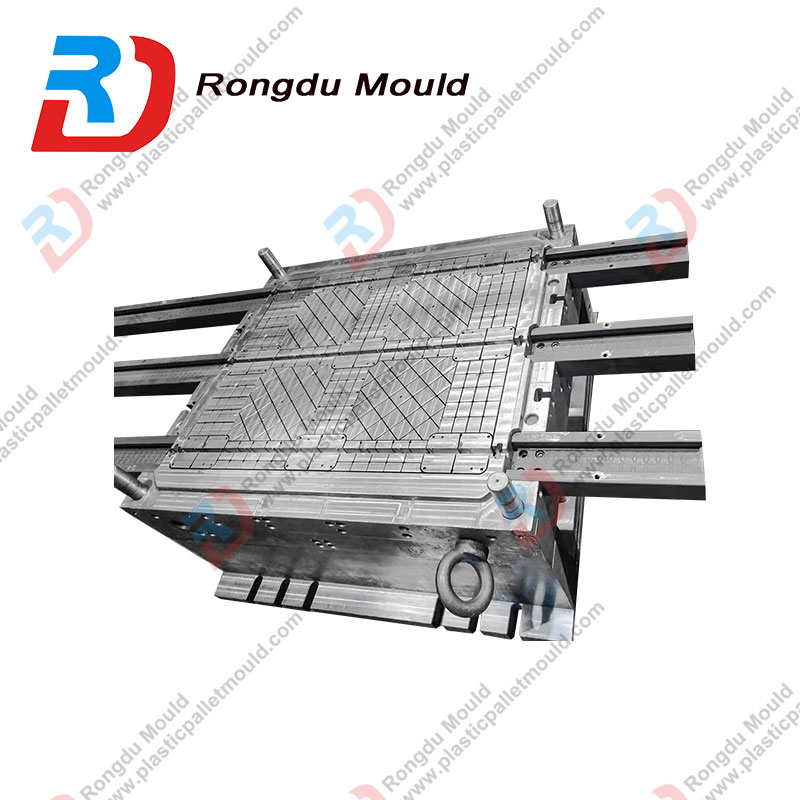

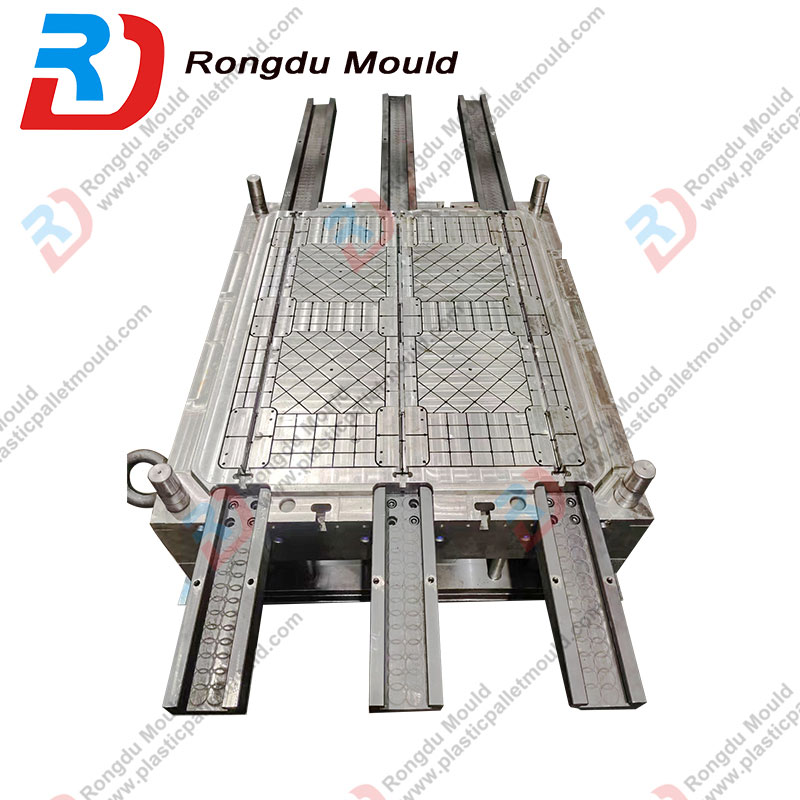

Mold Info:

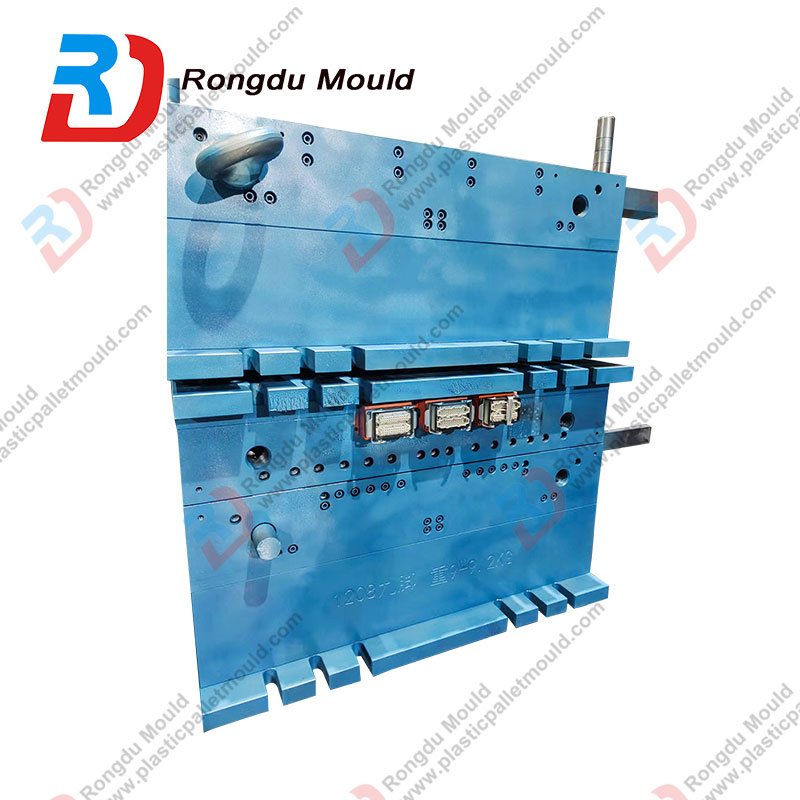

Mold Size: 1550x1300x950mm
Steel for Mold Basement: S50C#

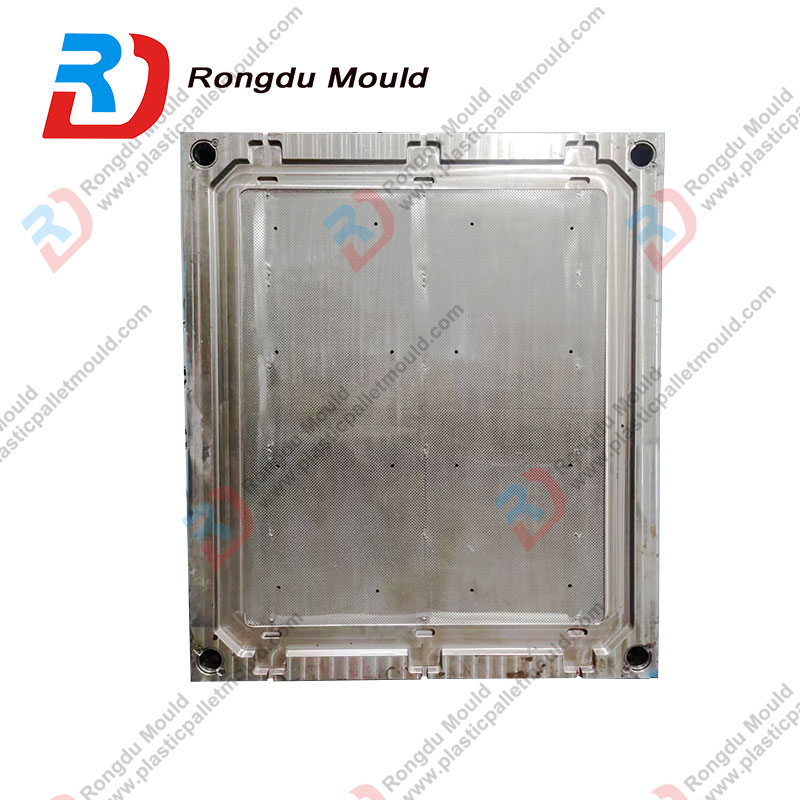

Steel for Mold Core & Cavity: HP20,H718,2738,S136
Steel Treatment Technology: Quenching, Heat Treatment, Pre-Hardening
Mold Design Program: UG(NX), AutoCAD, SolidWorks
Hot Runner System Brand: YUDO, MoldMaster, Chinese brand
Tips of Hot Runner: 16 tips
Cooling System: inserted Beryllium-Cooper(BeCu)
Ejection System:Ejector Pin & Plate
Hydraulic Cylinder: Taiwan Brand
Mold Tooling Machine:5-Axis CNC Machine, Double-Head EDM Machine, 3-Axis Drilling Machine
Mold Tooling Tolerance: within 0.01mm
Mold Spare Part: DME/HASCO standard, it could be easily for replace and maintain.
Mold Surface Treatment: High Gloss Polishing & Texture
Mold Cycle Time: 80S
Mold Life: more than 500K Shoots
T0 Time: 55 days
Mold Delivery: 60 days
Transport Package: Wooden Case
Mold Guarantee:1 Year
