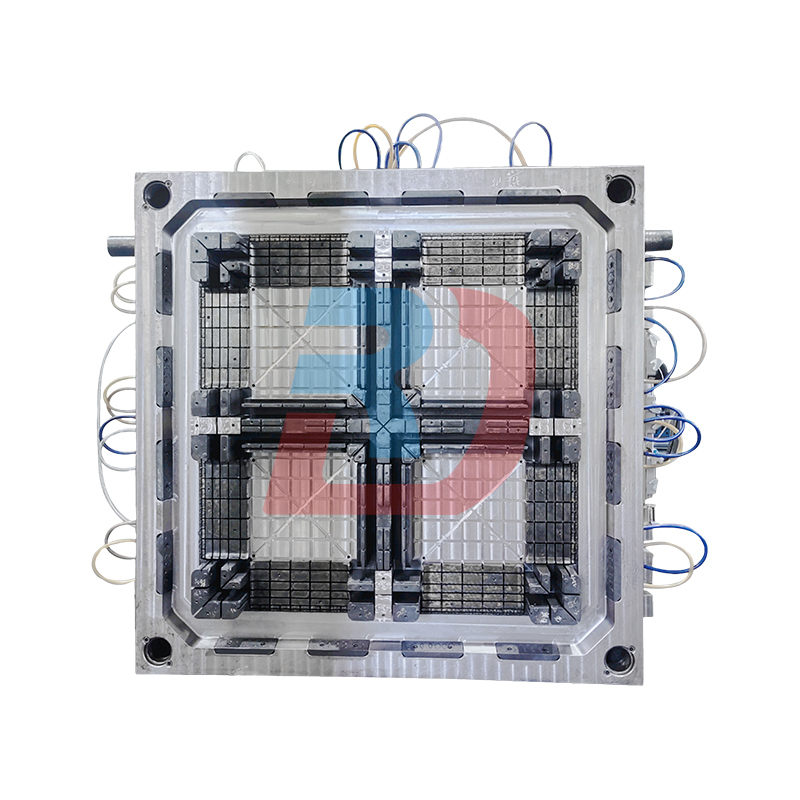

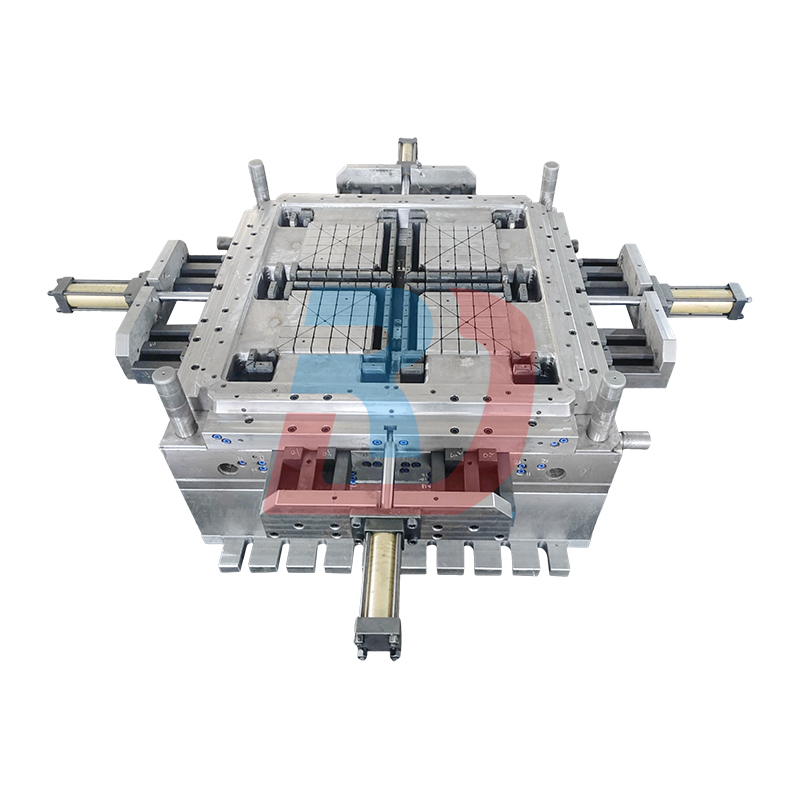

1210 Pallet Mould Grid Double-deck type Pallet

Parameter: 1200*1000*150mm Grid Double-deck type Pallet

Rongdu Mould is famous Pallet Mould Manufacturer. We focus on Plastic Pallet Mould more than 35 years. Over the years, we pay high attention to the Mould Quality and Service, take responsibility for each customer, so Rongdu won a good reputation from our regular customer.

Product Description

We have advanced and complete testing equipment to ensure the quality of our products.

Strength for Rongdu Plastic Injection Pallet Mould:
1.Good Quality for Product: Rongdu Pallet Mould produce the plastic pallet without burrs,without air trapping, without plastic deformation.
2.Prompt Mould Delivery: Rongdu will update to customer the mould processing schedule, like Gantt Chart. so we could finish the pallet mould within the required time.
3.Mould Raw Material Standard:
a.Core/Cavity: Rongdu using P20,P20HH for mould raw material
b.Insert Block & Slider: Rongdu using 718H for mould raw material
c.Steel Insert: Rongdu using 2738 for mould raw material
4.Hot Runner System: Rongdu using YUDO for hot runner system
5.Mould Life: P20HH pallet mould could inject more than 500K shoots.
6.After Service: Mould warranty 1 year. For our old regular customer, Rongdu provide more longer warranty

Mould Name

 1210 Pallet Mould

Product Size

 1200*1000*150mm

Product Description

 Grid Double-deck type Pallet

Mould Size

 1650*1720*1150mm

Mould Cavity

 1 cavity

Product Material

 HDPE/PP

Product Weight

 21.5kg

Mould Injection System

 24 tips China Brand Hot Runner

Mould Ejetion System

 Ejector Pin & Ejector Plate

Mould Cycle Time

 180s

Cor/Cav Mould Steel

 Pre-hardened P20 with forging technology & HRC38-45°

Interchangeable Block & Slider Steel

 Pre-hardened 718H with HRC36-40°

Mould Components

 DME/HASCO standard parts.

Mould Life Guarantee

 1 Million Shots

Hydraulic Cylinder

 Made in Taiwan

Surface Treatment

 Polishing/Texture

Delivery Time

 80 Working Days


RongDu Pallet Mould pass the stable loading test, shelf loading test, dynamic test.
RongDu Mould is master for pallet mould. Come on for wonderful pallet mould.

Taizhou Huangyan Rongdu Mould Co., Ltd.

Rongdu mold Co., Ltd. is well-known China 1210 Pallet Mould Grid Double-deck type Pallet suppliers with more than 30 years of experience in the professional development and manufacturing of all kinds of plastic mold. The company specializes in producing plastic tray molds, turnover box molds, trash cans molds and daily necessities molds. It is located on the coast of the East China Sea, Zhejiang Huangyan, which is known as the kingdom of mold, with convenient transportation and superior geographical location.
In recent years, as a leading OEM 1210 Pallet Mould Grid Double-deck type Pallet company the company has owned several CNC processing equipment of Japan and Taiwan, with the introduction of the advanced technology at home and abroad. We now have advanced CAD / CAM design system, large CNC machining center, CNC wire cutting equipment, high-precision electric spark and deep hole drilling and other processing equipment. We have accumulated rich production experience and realized the integration of mold development, design and manufacturing after years of mold development and manufacturing.
With the continuous development of the company, the products have been exported to many places including Europe, America, the Middle East, South Africa and Southeast Asian countries.
Rongdu Mold sincerely welcome new customers to call or write to negotiate! We look forward to sincere cooperation, joint efforts, mutual benefit and win-win situation!
