1200x1000x700mm logistics transportation storage plastic container turnover box pallet mold

"Making Logistics More Faster" is our final achievement. So Rongdu Mould devote ourselves to logistics industrial for more than 30 years, we are on of the leaders at Pallet Mould manufacturing.
In order to support better quality pallet, Rongdu pay highly attention on the Mold Quality.  Rongdu have strong design team, we make many optimizations from hot runner system, cooling system, ejection system, and using well standard mold raw material, like HP20,H718,2738,S136 etc.
Rongdu Mould support more than 600 sets mould, including more than 500 sets pallet mould annually, and won a good reputations from our regular customer.

Product Description

We have advanced and complete testing equipment to ensure the quality of our products.

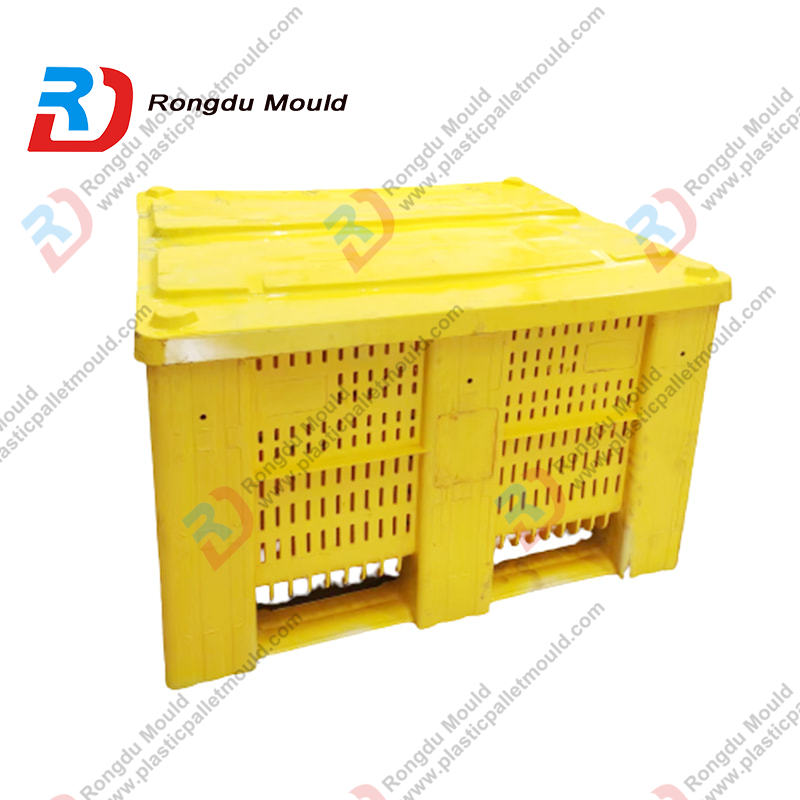

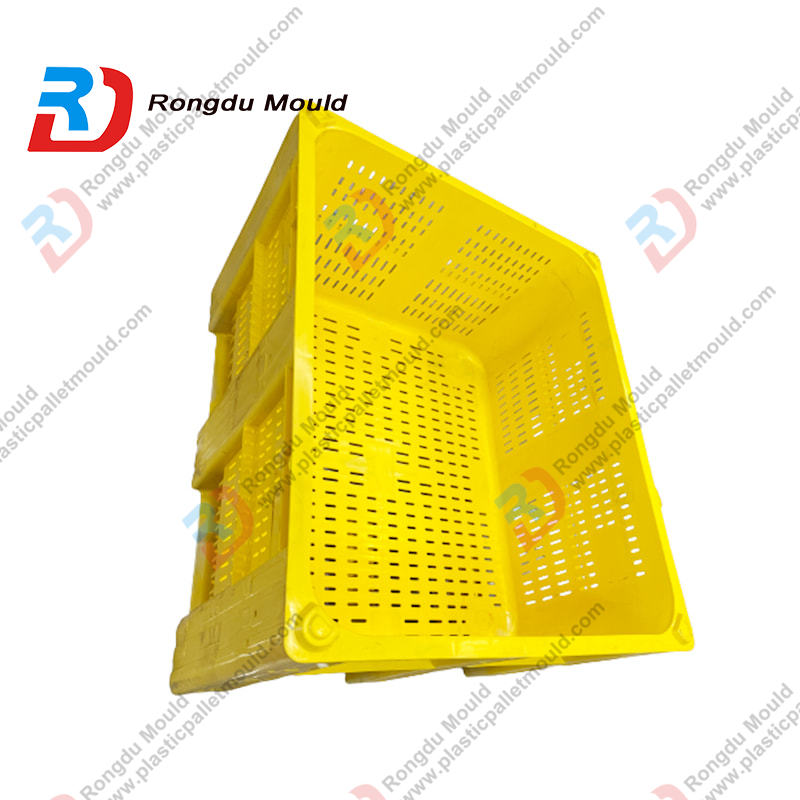

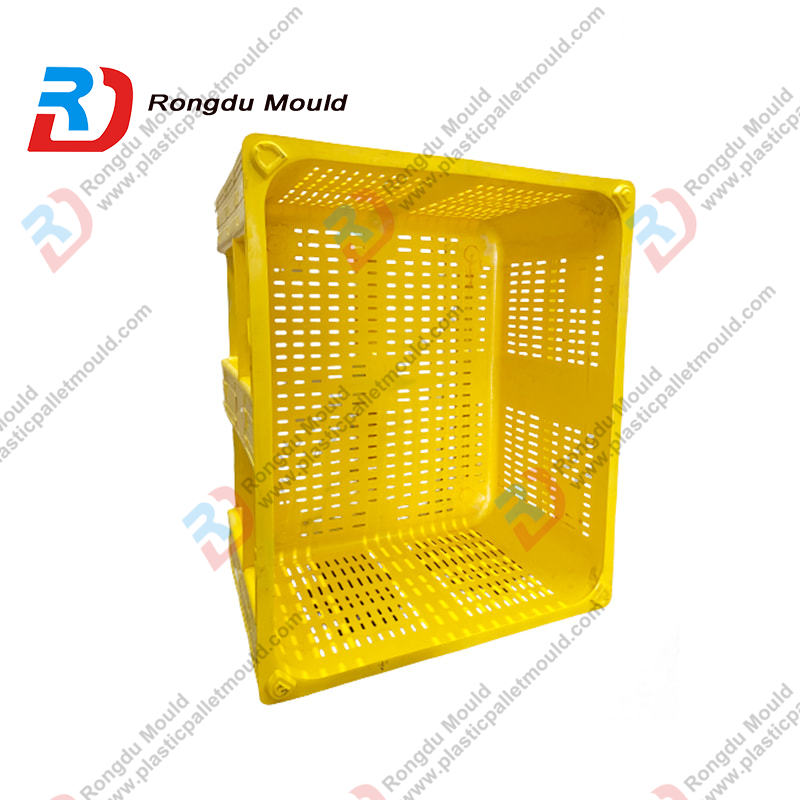

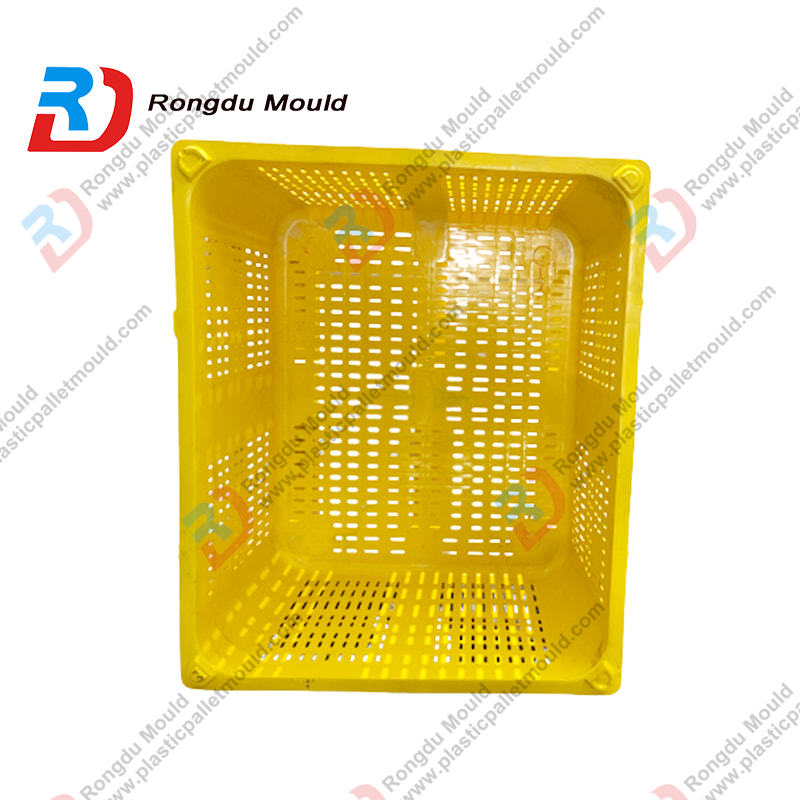

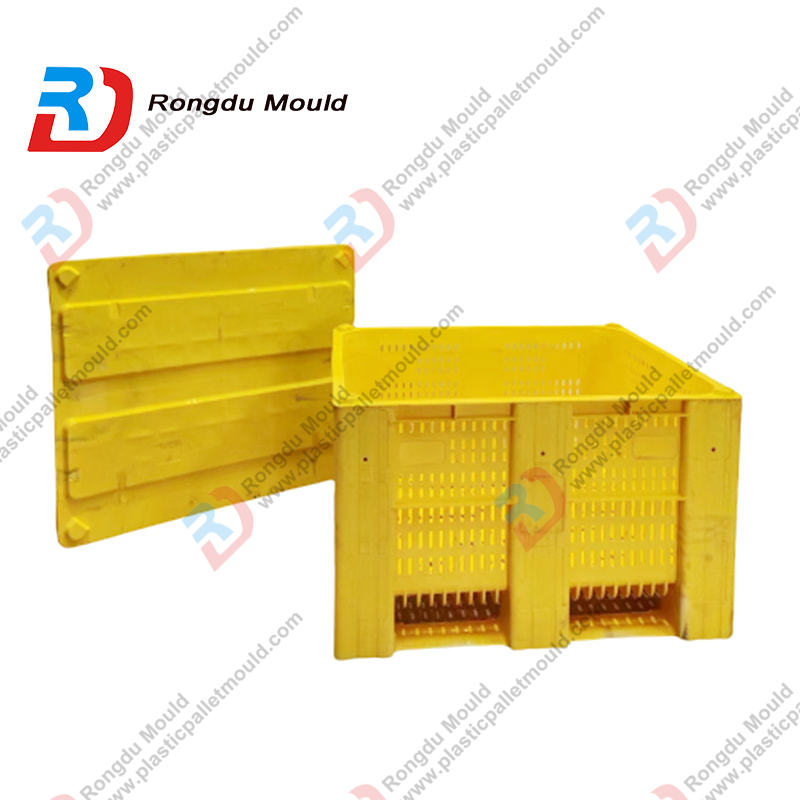

Rongdu Mould pay high attention on the product & mould design, 1200x1000x700mm plastic bulk container pallet have two types product, GRID-TYPE & FLAT-TYPE. And Rongdu adopt integrated mold manufacturing method, it could optimize mould structure and make longer about mould life.

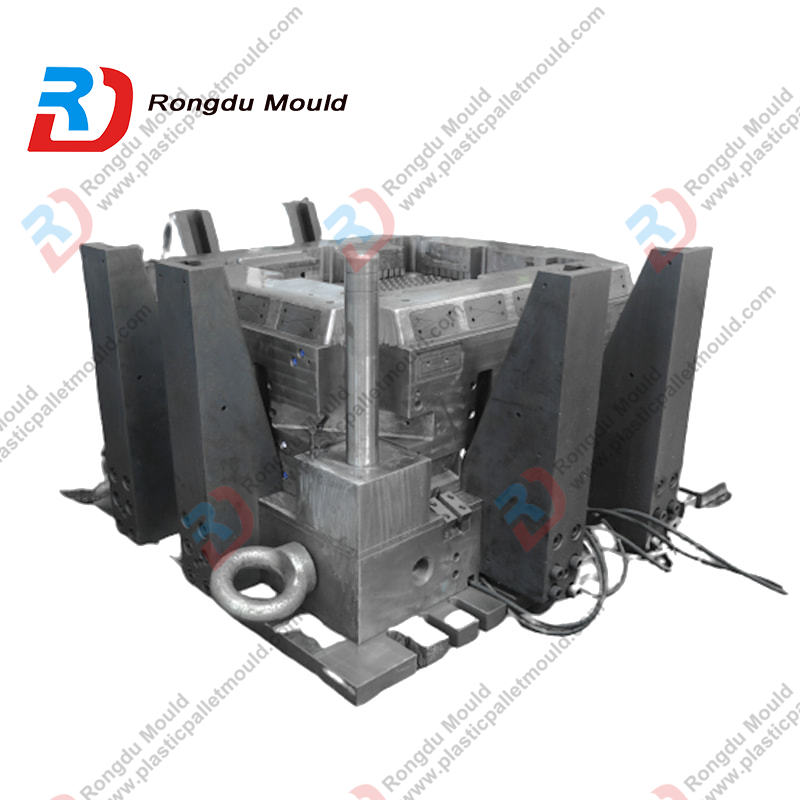

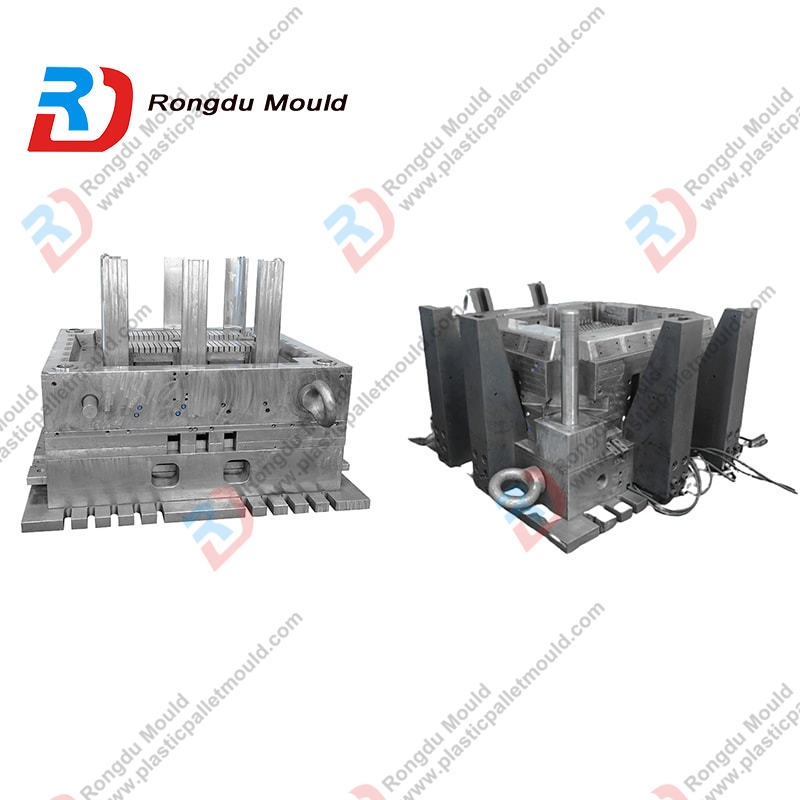

Those big mold have high requirement for the water cooling & balance of ejection. Rongdu Mould have storage design ability, we using bigger diameter of the water runner and optimizing the distribution about the water runner. As the ejection system, Rongdu using four slider, and adopt imported hydraulic cylinder to support enough power, to realize the balance during the mould opening.



Multiple interchange type about the plastic turnover container pallet make it has various applications, it could use for fruit storage, clothes storage, sea food storage.

Advantages of the bulk container pallet:

1. Well Storage Ability

a. Plastic turnover pallet could take 80KG and has well loading ability

b. Plastic turnover pallet could stack 8 pieces

2. Easily For Transportation

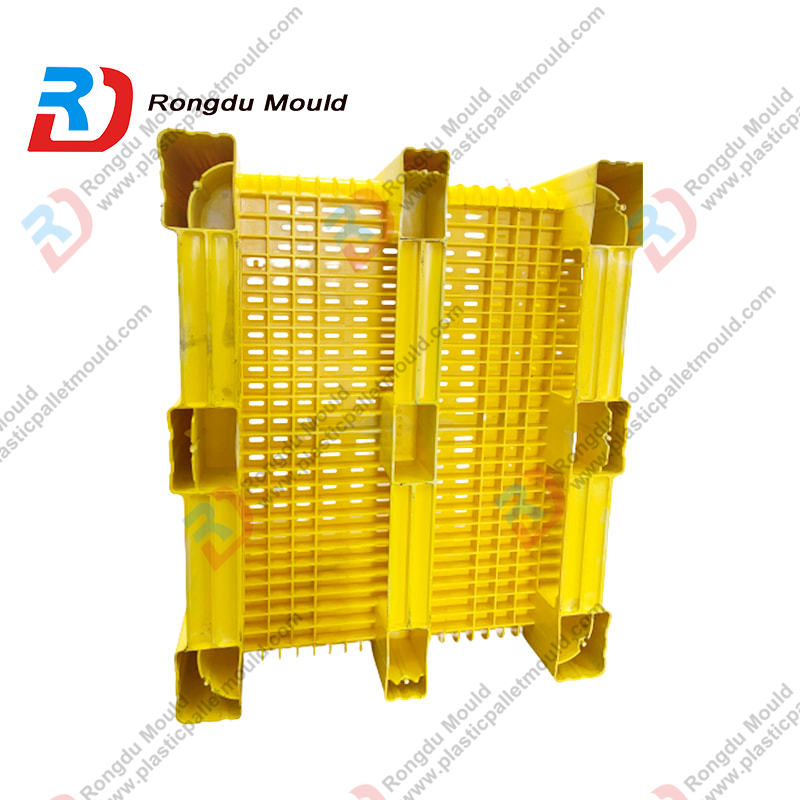

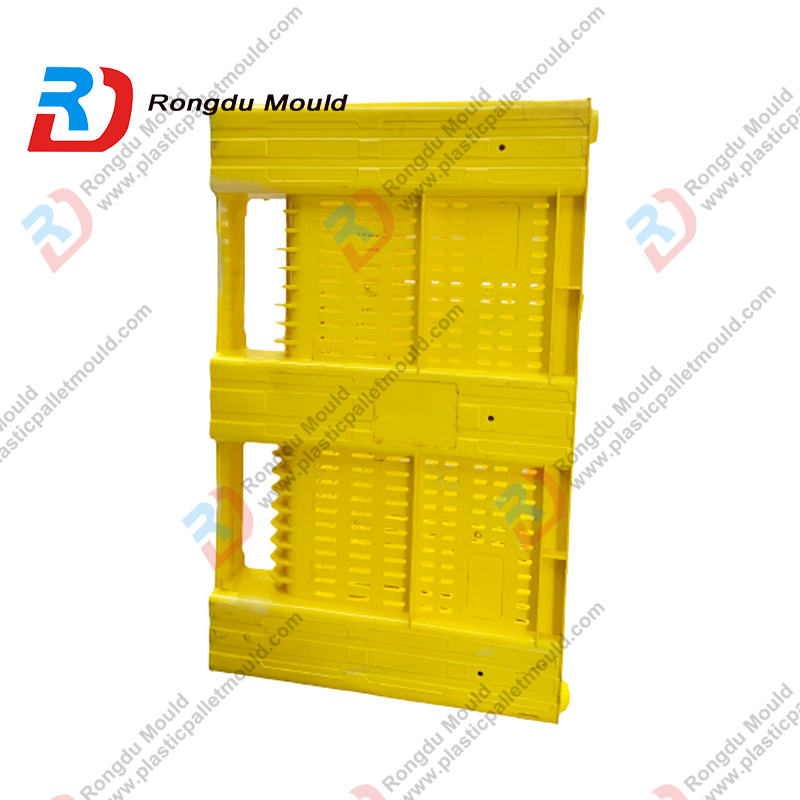

a. The bottom is pallet structure, it has 4 entrance way, and suitable for forklift

Product Basci Info:
Pallet Size: 1200*1000*700mm logistics transportation storage plastic container turnover box pallet mold
Plastic: HDPE/PP
Pallet Weight: 35kg(New HDPE)

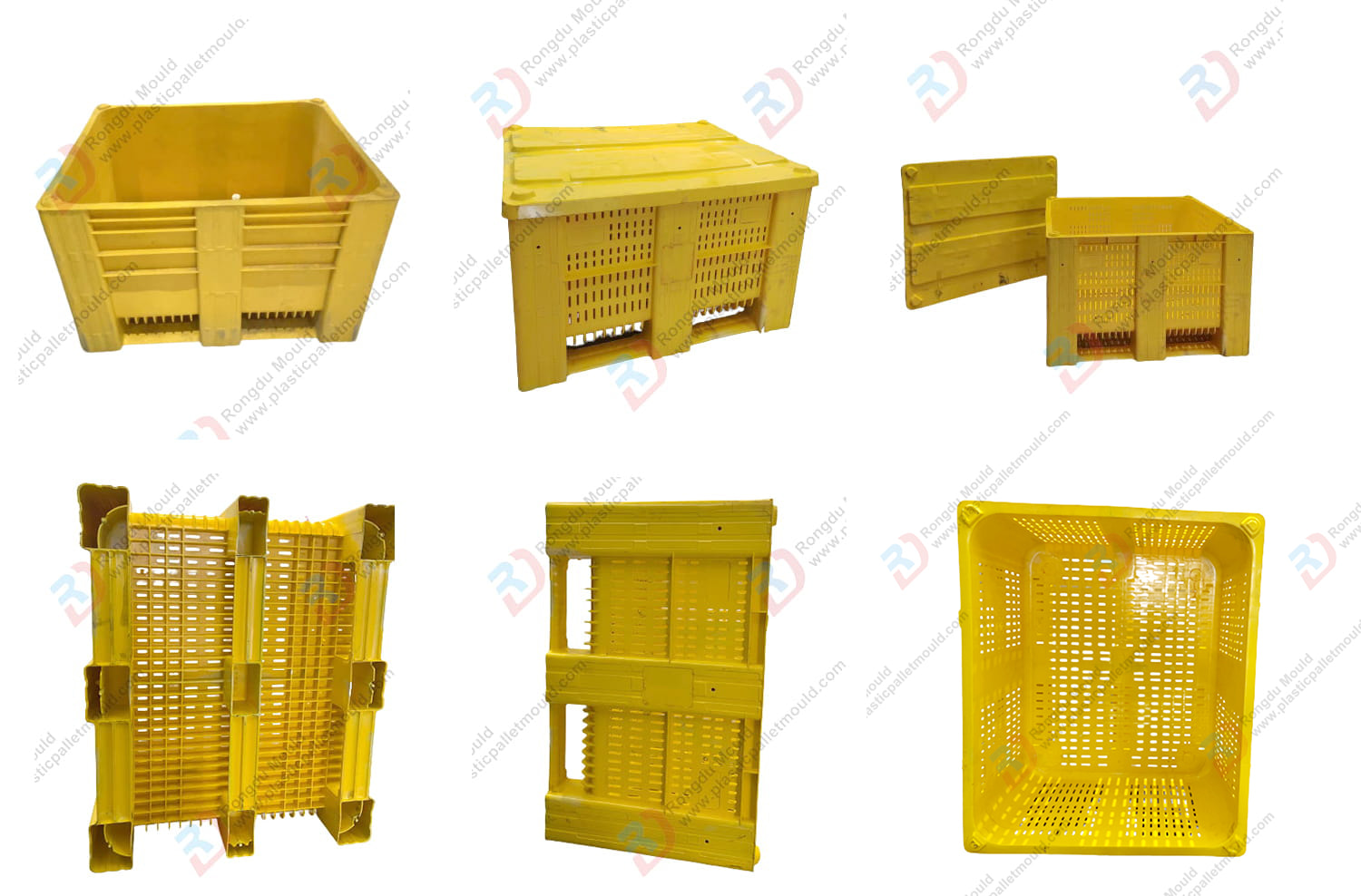

Pallet type: Grid,Flat, Net, Four-Entrance, integrated
Application: Logistics Transportation Industrial
Mold Name: 1200*1000*700mm Custom-Made Plastic Injection Bulk Pallet Container Mold
Certification: TUV Certification
Origin: China
Port: Ningbo Port
Mark-Name: RONGDU MOULD

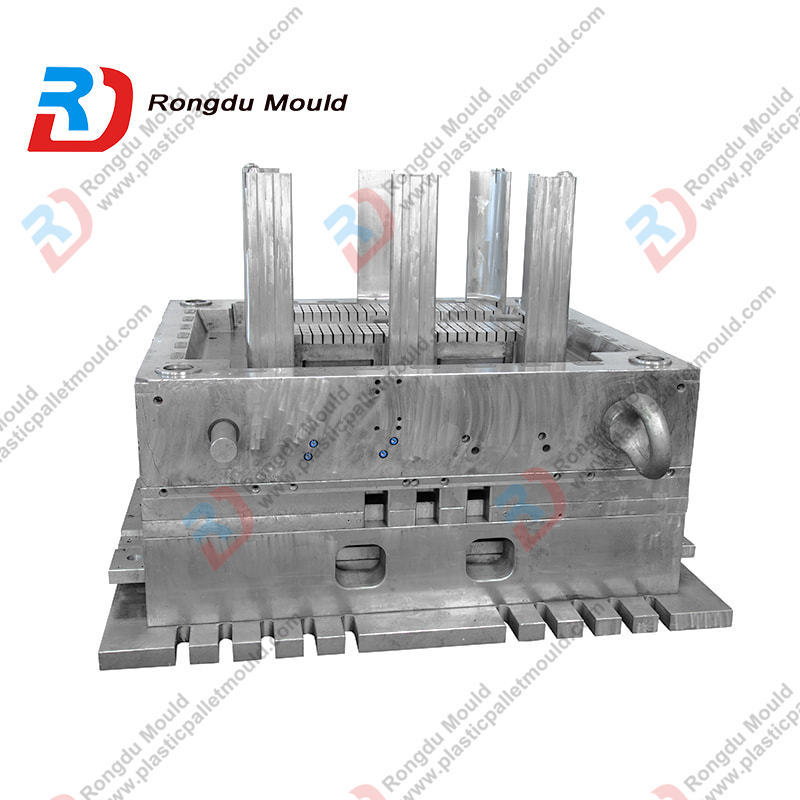

Mold Info:
Mold Size: 2400*2250*1450mm
Steel for Mold Basement: S50C#
Steel for Mold Core & Cavity: HP20,H718,2738,S136
Steel Treatment Technology: Quenching, Heat Treatment, Pre-Hardening
Mold Design Program: UG(NX), AutoCAD, SolidWorks
Hot Runner System Brand: YUDO, MoldMaster, Chinese brand
Tips of Hot Runner: 24 tips
Cooling System: inserted Beryllium-Cooper(BeCu)
Ejection System: Ejector Pin & Plate
Hydraulic Cylinder: Taiwan Brand
Mold Tooling Machine: 5-Axis CNC Machine, Double-Head EDM Machine, 3-Axis Drilling Machine
Mold Tooling Tolerance: within 0.01mm
Mold Spare Part: DME/HASCO standard, it could be easily for replace and maintain.
Mold Surface Treatment: High Gloss Polishing & Texture
Mold Cycle Time: 150S
Mold Life: more than 500K Shoots
T0 Time: 110 days
Mold Delivery: 120 days
Transport Package: Wooden Case
Mold Guarantee: 1 Year

Taizhou Huangyan Rongdu Mould Co., Ltd.

Rongdu mold Co., Ltd. is well-known China 1200x1000x700mm logistics transportation storage plastic container turnover box pallet mold suppliers with more than 30 years of experience in the professional development and manufacturing of all kinds of plastic mold. The company specializes in producing plastic tray molds, turnover box molds, trash cans molds and daily necessities molds. It is located on the coast of the East China Sea, Zhejiang Huangyan, which is known as the kingdom of mold, with convenient transportation and superior geographical location.
In recent years, as a leading OEM 1200x1000x700mm logistics transportation storage plastic container turnover box pallet mold company the company has owned several CNC processing equipment of Japan and Taiwan, with the introduction of the advanced technology at home and abroad. We now have advanced CAD / CAM design system, large CNC machining center, CNC wire cutting equipment, high-precision electric spark and deep hole drilling and other processing equipment. We have accumulated rich production experience and realized the integration of mold development, design and manufacturing after years of mold development and manufacturing.
With the continuous development of the company, the products have been exported to many places including Europe, America, the Middle East, South Africa and Southeast Asian countries.
Rongdu Mold sincerely welcome new customers to call or write to negotiate! We look forward to sincere cooperation, joint efforts, mutual benefit and win-win situation!
